Extraction Kits for Automatic Instruments

TGuide Smart Magnetic Plant DNA Kit

Purify high-quality genomic DNA from various plant tissues

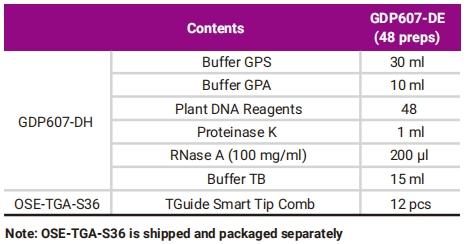

Catalog number / packaging

Cat. no

ID

No. of preps

4993548(cartridge)

 DP607-DE 48
Manual Inquire Inspection report

  • Reagent selection guide for TGuide S16



    Nuclei Acid Sample Type Product Name

    Packing size (preps)

    Cartridge/plate

    Cat no.

    Cartridge/plate

    DNA Animal Tissue
    		 TGuide Smart Magnetic Tissue DNA Kit 48/96
    		 4993547/4995038
    DNA Plant & Seed TGuide Smart Magnetic Plant DNA Kit 48 4993548
    DNA Soil/Stool TGuide Smart Soil /Stool DNA Kit 48 4993549
    DNA Gel & PCR products TGuide Smart DNA Purification Kit 48 4993550
    DNA  Whole Blood TGuide Smart Blood Genomic DNA Kit 48/96
    		 4993703/4995206
    DNA Cell/Swab/Dry Spots,etc TGuide Smart Universal DNA Kit 48/96
    		 4993704/4995040
    RNA Blood/Cell/Tissue TGuide Smart Blood/Cell/Tissue RNA Kit 48/96
    		 4993551/4995043
    RNA Plant & Seed TGuide Smart Magnetic Plant RNA Kit 48 4993552
    DNA/RNA Cell Free Fluids (Serum,etc) TGuide Smart Viral DNA/RNA Kit 48/96
    		 4993702/4995207


  • Product introduction

    •Widely applicable: It is suitable for a variety of plant tissues, especially polysaccharide- or polyphenol-rich plants.

    •Safe and non-toxic: No toxic organic reagents such as phenol/chloroform contained.

    •High purity: The obtained DNA has high purity and can be directly used for chip detection, high-throughput sequencing and other experiments.

  • Features

    Super easy to use


    No extra pipetting work.

    The elution volume can be adjusted as required.



    The installation and operation require little training. With pre-installed programs, unpack the cartridge, select the protocol and run your experiment. Programs are ready-to-use, and also customizable.



    Preloaded reagents and matched disposable consumables.

    The chemical handling is eliminated to the greatest extent to ensure the operation safety.



  • Genomic DNA extraction of potato

    Sample size: 100 mg

    Sample pre-treatment: grinding with liquid nitrogen or tissue homogenizer

    Agarose gel concentration :2% (TAE)

    Loading volume: 2 μl

    Marker: D15000, TIANGEN S16-01, S16-02 and S16-03 represent parallel experiments of extracting plant genomic DNA by using 3 TGuide S16 Nucleic Acid Extractors at the same time.

    A Company: a well-known brand


    Experiment result: using TGuide S16 with reagent 4993548 to automatically extract the genomic DNA of potatoes has achieved good yield and high purity, which is equivalent to the extraction product quality of well-known competing spin-column extraction kits. In this experiment, about 11 μg of nucleic acid was extracted from 100 mg potato buds, with OD260/OD280 around in 1.8~1.9, and OD260/OD230＞2.0.

  • Genomic DNA extraction of soybean leaf

    Sample size: 100 mg

    Sample pre-treatment: grinding with liquid nitrogen or tissue homogenizer

    Agarose gel concentration :1% (TAE)

    Loading volume: 2 μl

    Marker: D15000, TIANGEN


    Experiment result: using TGuide S16 with reagent 4993548 to automatically extract the genomic DNA of soybean leaves has achieved good yield and high purity. In this experiment, about 13μg of nucleic acid was extracted from 100 mg soybean leaves, with OD260/OD280 around 1.8~1.9, and OD260/OD230＞2.0.

  • Genomic DNA extraction of wheat roots

    Sample size: 100 mg

    Sample pre-treatment: grinding with liquid nitrogen or tissue grinding homogenizer

    Agarose gel concentration :1% (TAE)

    Loading volume: 2 μl

    Marker: D15000, TIANGEN

    A Company: a well-known brand


    Experiment result: using TGuide S16 with reagent 4993548 to automatically extract the genomic DNA of wheat roots has achieved good yield and high purity, which is equivalent to the extraction yield and purity of well-known competitors. Moreover, the integrity of genomic DNA is better than that of the competing products of other companies. In this experiment, about 15 μg of nucleic acid was extracted from 100 mg wheat roots, with OD260/OD280 around 1.8~1.9, and OD260/OD230＞2.0.
