PCR Systems
InquireCatalog Number｜Packaging
Mat. No |
Ref. No |
No. of preps |
|
OSE-GP-06-AM |
OSE-GP-06-AM | 1 Set |
-
Overview

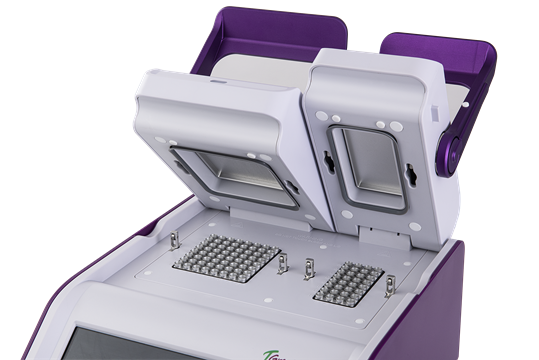

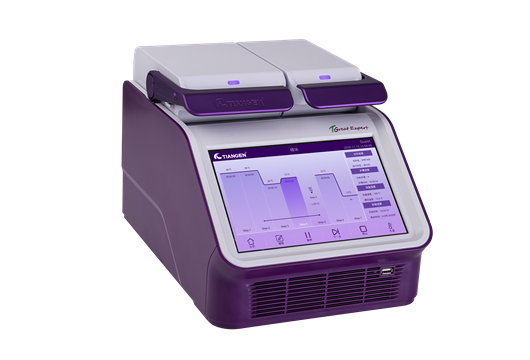

The TGreat Expert (Dual Block) Gradient Thermal Cycler is a versatile system designed for flexible and efficient PCR workflows. Featuring independent 64‑well and 32‑well gradient blocks, it enables simultaneous execution of different PCR programs with precise temperature control, improving efficiency for parallel experiments and optimization.
-
Why Choose TGreat Expert (Dual Block) Gradient Thermal Cycler
- Dual‑block design (64‑well + 32‑well) – run two programs independently
- Flexible experiment setup – perform different protocols simultaneously
- Improved efficiency – reduce total experiment turnaround
-
Key Features
- Independent dual‑block operation – run two PCR programs at the same time
- 64‑well + 32‑well capacity – supports flexible sample configurations
- Fast ramp rate up to 5°C/s – reduces experiment time
- Temperature accuracy ±0.1°C – ensures reproducibility
- Wide gradient capability – simplifies PCR optimization
-
Applications
- Simultaneous execution of different PCR protocols
- Parallel amplification for multiple experiments
- PCR optimization and condition
-
Specifications
Dual‑Block PCR Thermal Cycler (64 + 32 Wells) Technical Specifications
Parameter TGreat Expert (Dual‑Block) Sample Capacity 64 wells (Block A) + 32 wells (Block B) Independent Operation Two PCR programs can run simultaneously Temperature Range 0–105°C Maximum Ramp Rate 5°C/s Temperature Accuracy ±0.1°C Temperature Uniformity ≤ ±0.2°C Gradient Range 1–30°C Gradient Distribution 8‑column gradient per block (independent control) Heated Lid Temperature 30–115°C Display 10.1” touchscreen Interface & Connectivity USB 2.0, WiFi Program Storage 20000+ (USB supported) Dimensions (L×W×H) 385 × 270 × 255 mm Weight ~11 kg Power Supply 100–240 V, 50/60 Hz, 600 W -
FAQ
What is a dual‑block gradient PCR thermal cycler?
A: A dual‑block gradient PCR thermal cycler allows two independent PCR programs to run simultaneously in separate blocks, providing flexibility and efficient workflow management.What are the advantages of a dual‑block PCR system?
A: It enables parallel experiments, reduces total experiment time, and allows different PCR protocols to be performed simultaneously in a single instrument.How is a dual‑block PCR cycler different from a standard PCR system?
A: Unlike single‑block systems, a dual‑block PCR cycler can operate two independent programs at the same time, improving flexibility and laboratory efficiency.Can the two blocks run different PCR programs independently?
A: Yes, the two blocks can be controlled independently, allowing different experimental conditions and protocols to run simultaneously.What applications is a dual‑block PCR thermal cycler suitable for?
A: It is ideal for laboratories performing multiple PCR experiments in parallel, optimization workflows, and flexible research applications. -
PCR Thermal Cycler Comparison
Compare different PCR thermal cyclers to identify the optimal system for your workflow.
Technical Specifications
Block / TubeBlock / TubeBlock / TubeParameter 96‑Well 384‑Well Dual‑Block Product Model TGreat Expert (96 well) TGreat Expert (384 well) TGreat Expert (dual‑slot) Sample Capacity 96 × 0.2 ml 384 well plate 64 + 32 × 0.2 ml Consumable 0.2 ml tubes, 8‑strip, 96‑well plate 384 well microplate 0.2 ml tubes, 8‑strip Volume 1–100 μl 1–50 μl 1–120 μl Temperature Range 0–105°C 0–105°C 0–105°C Maximum Ramp Rate 5°C/s 5°C/s 5°C/s Temperature Uniformity ≤ ±0.2°C ≤ ±0.2°C ≤ ±0.2°C Temperature Accuracy ≤ ±0.1°C ≤ ±0.1°C ≤ ±0.1°C Temperature Control Mode Block / Tube Block / Tube Block / Tube Adjustable Ramp Rate 0.1–5°C/s 0.1–5°C/s 0.01–5°C/s Gradient Setting Range 1–42°C 1–42°C 1–30°C Gradient Distribution 12‑column gradient 24‑column gradient 8‑column per block Maximum Program Steps 30 30 40 Display 10.1”, 1024×600 10.1”, 1024×600 10.1”, 1280×800
-
