Vortex Mixers
InquireCatalog Number｜Packaging
Mat. No |
Ref. No |
No. of preps |
|
OSE-VX-01-AM |
OSE-VX-01-AM | 1 Set |
-
Description
The TGrate Vortex Basic is a compact and reliable laboratory vortex mixer designed for rapid and efficient sample mixing. Featuring a powerful brushless DC motor and adjustable speed control up to 3000 rpm, it delivers strong vortex action for thorough mixing of liquids in various laboratory containers.
The instrument is engineered with an optimized counterweight structure for enhanced stability during high-speed operation. Its upgraded vortex head is made from highly durable and wear-resistant materials that help prevent particle shedding, fading and aging during long-term use. With a wide range of interchangeable accessories, the TGrate Vortex Basic can accommodate microtubes, centrifuge tubes, test tubes, microplates, flasks and other sample containers, making it suitable for diverse laboratory applications.
-
Key Features
-
Enhanced Stability
Optimized counterweight design and anti-slip suction feet ensure stable operation with minimal vibration, even at speeds up to 3000 rpm. -
Durable and Wear-Resistant Vortex Head
The upgraded vortex head is made from high-quality wear-resistant material that resists aging, fading and particle shedding during long-term use. -
Broad Container Compatibility
Compatible with microcentrifuge tubes, centrifuge tubes, test tubes, microplates, flasks and other laboratory vessels. -
Multiple Accessory Options
A variety of interchangeable accessories allow flexible adaptation to different sample types and experimental workflows. -
Powerful and Efficient Mixing
Strong vortex force enables rapid and uniform mixing of laboratory samples with speeds up to 3000 rpm. -
Touch and Continuous Operation
Supports both touch-activated and continuous running modes for routine laboratory applications.
-
Enhanced Stability
-
Technical Specifications
Catalog Number OSE-VX-01-AM Working Mode Touch / Continuous Mode Vibration Mode Circumferential Amplitude 6 mm Speed Range 0–3000 rpm Speed Control Knob Variable Speed Control Power Supply DC 12 V, 3 A Dimensions (W × D × H) 107 × 146 × 166 mm Net Weight 3 kg Protection Class IP21 -
Optional accessories
A range of interchangeable accessories is available to support different sample formats and laboratory applications. The TGrate Vortex Basic is compatible with microcentrifuge tubes, centrifuge tubes, microplates, Erlenmeyer flasks and various laboratory vessels, providing maximum flexibility for sample preparation and mixing workflows.

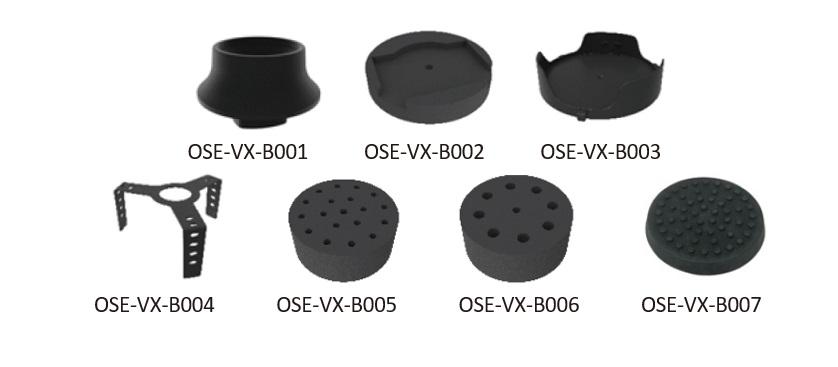

Cat. No. Accessory Application OSE-VX-B001 Standard Top Standard mixing cup supplied with the instrument for routine vortex mixing. OSE-VX-B002 Universal Top Universal platform used together with dedicated holders and adapters. OSE-VX-B003 Microplate Adapter Designed for mixing microplates. Used together with the Universal Top. OSE-VX-B004 Erlenmeyer Flask Holder (100–250 mL) Suitable for 100–250 mL Erlenmeyer flasks. Used together with the Universal Top. OSE-VX-B005 1.5/2.0 mL Tube Holder Designed for simultaneous mixing of multiple microcentrifuge tubes. Used together with the Universal Top. OSE-VX-B006 15 mL Tube Holder Designed for simultaneous mixing of multiple 15 mL centrifuge tubes. Used together with the Universal Top. OSE-VX-B007 Flat Platform Suitable for mixing various laboratory containers and vessels.
-
FAQ
What is the TGrate Vortex Basic used for?
The TGrate Vortex Basic is designed for rapid and efficient mixing of laboratory samples. It is suitable for sample preparation, reagent mixing, molecular biology workflows, clinical testing and routine laboratory applications.What types of containers can be used with the TGrate Vortex Basic?
The TGrate Vortex Basic supports a wide range of laboratory containers through interchangeable accessories, including microcentrifuge tubes, centrifuge tubes, test tubes, microplates, Erlenmeyer flasks and other laboratory vessels.How does the TGrate Vortex Basic ensure stable operation?
The instrument features an optimized counterweight design and anti-slip suction feet, helping minimize vibration and movement during operation and ensuring stable performance even at high speeds.What makes the vortex head more durable?
The upgraded vortex head is made from high-quality wear-resistant and anti-aging materials, helping prevent particle shedding, discoloration and premature wear that are commonly seen in conventional vortex mixers.Can the TGrate Vortex Basic accommodate different sample formats?
Yes. With a variety of optional accessories, the instrument can be used with microcentrifuge tubes, centrifuge tubes, microplates, flasks and other laboratory containers, providing flexibility for different applications.What is the speed range of the TGrate Vortex Basic?
The speed can be continuously adjusted from 0 to 3000 rpm, allowing users to optimize mixing performance for different sample types and volumes.Does the TGrate Vortex Basic support different operating modes?
Yes. The instrument supports both touch-activated and continuous operation modes, making it suitable for both quick mixing tasks and extended workflows.Is the TGrate Vortex Basic suitable for routine laboratory use?
Yes. Its stable operation, durable construction and broad accessory compatibility make it ideal for research, clinical, educational and industrial laboratories.
-
