Vortex Mixers
InquireCatalog Number｜Packaging
Mat. No |
Ref. No |
No. of preps |
|
OSE-VX-02-G |
OSE-VX-02-G | 1 Set |
-
Description

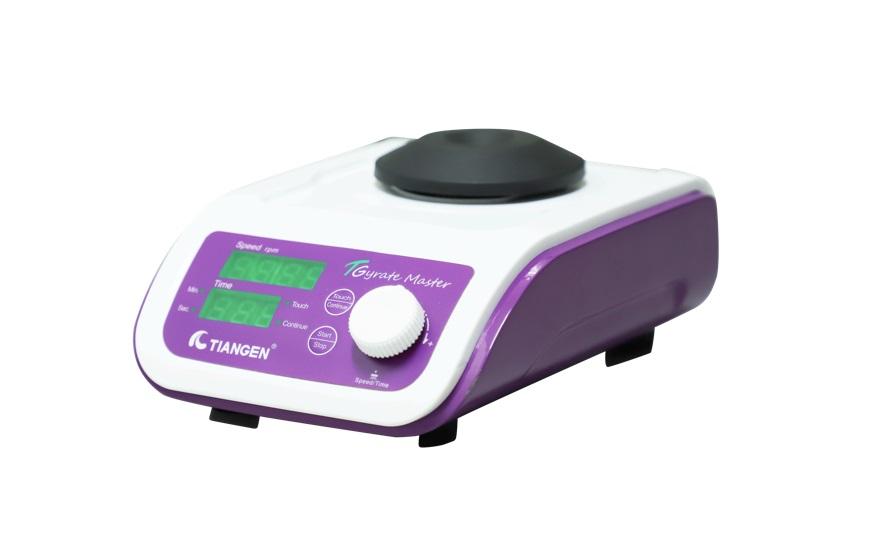

The TGyrate Master Vortex is a high-performance digital vortex mixer designed for fast, reliable, and reproducible sample mixing in research, clinical, biotechnology, and pharmaceutical laboratories. Featuring variable speed control from 200 to 3000 rpm, a 4.5 mm orbital motion, and both touch and continuous operation modes, it delivers powerful vortex action for rapid and uniform sample homogenization.
Compatible with a wide range of tube holders, adapters, and microplate accessories, the TGyrate Master Vortex provides exceptional flexibility for mixing centrifuge tubes, microtubes, test tubes, and microplates. The intuitive digital control system enables precise speed and timer settings, while the robust construction ensures stable operation, low noise, and long-term durability in demanding laboratory environments.
Designed for routine laboratory workflows and advanced sample preparation applications, the TGyrate Master Vortex combines powerful performance, ease of use, and versatile accessory options in a compact footprint.
-
Key Features
- Powerful Mixing Performance – Strong vortex action with a 4.5 mm orbit ensures rapid and uniform sample mixing.
- Precise Digital Control – Variable speed adjustment from 200–3000 rpm with digital display for accurate operation.
- Dual Operating Modes – Supports both touch and continuous mixing modes for maximum workflow flexibility.
- Versatile Accessory Compatibility – Accommodates multiple tube formats and microplates through interchangeable adapters.
- Integrated Timer Function – Programmable timing settings support reproducible experimental results.
- Stable and Low-Noise Operation – Optimized mechanical design minimizes vibration while ensuring reliable performance.
- Built for Laboratory Use – Durable construction designed for everyday use in research and diagnostic laboratories.
-
Technical Specifications
Model OSE-VX-02 Working Mode Touch / Continuous Mode Vibration Mode Orbital Motion Amplitude 4.5 mm Maximum Load 1.5 kg Speed Range 200–3000 rpm Timer Range 1–999 min / 1–999 sec / ∞ Speed Control Stepless Speed Regulation Power Supply DC 24 V, 2 A, 50/60 Hz Input Power 20 W Output Power 15 W Dimensions (W × D × H) 210 × 150 × 69 mm Net Weight 4 kg Protection Class IP21 -
Standard Accessories

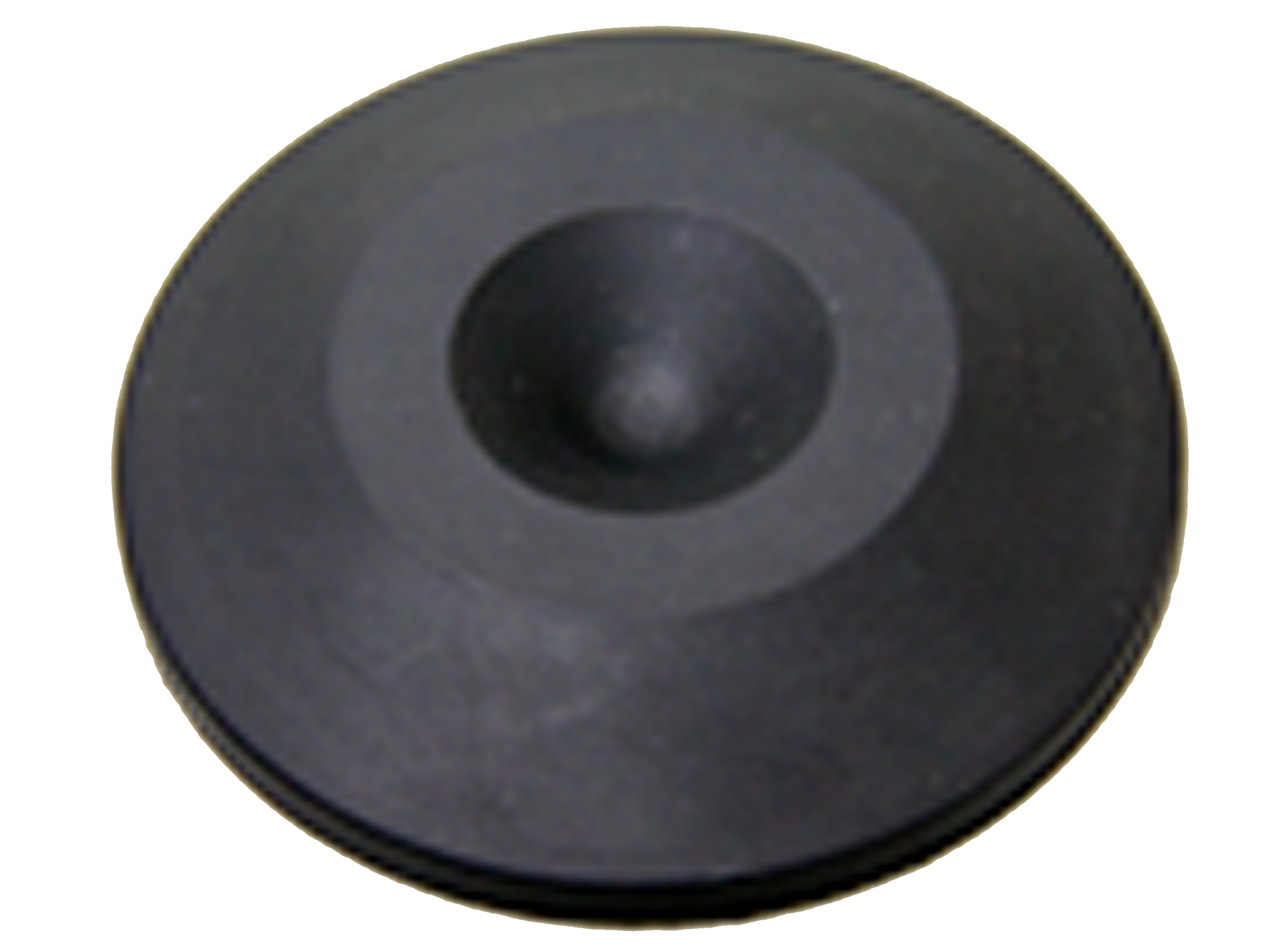

Product Name Cat. No. Product Image Standard Top OSE-VX-M110

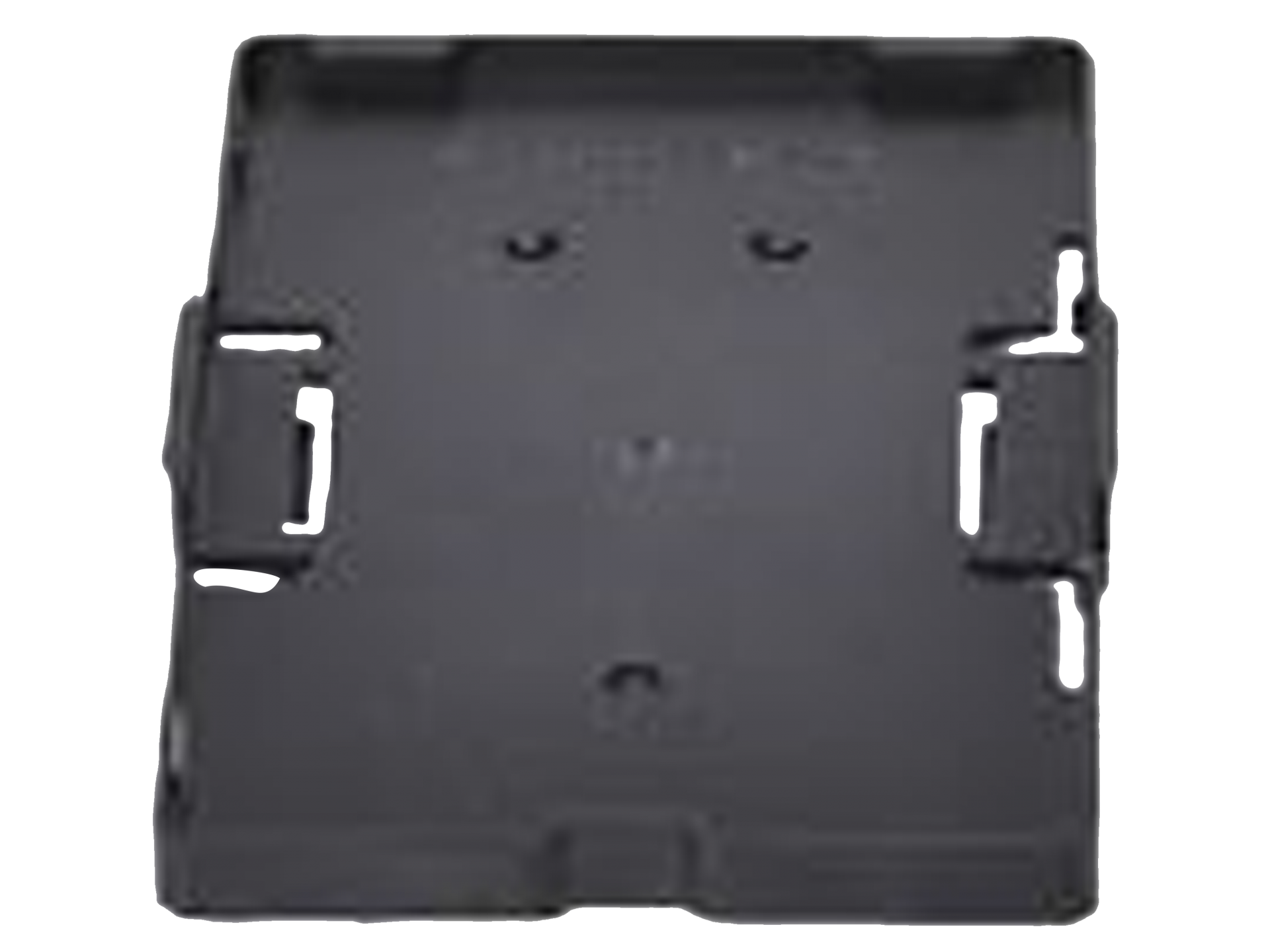

Microtiter Plate Top OSE-VX-M130

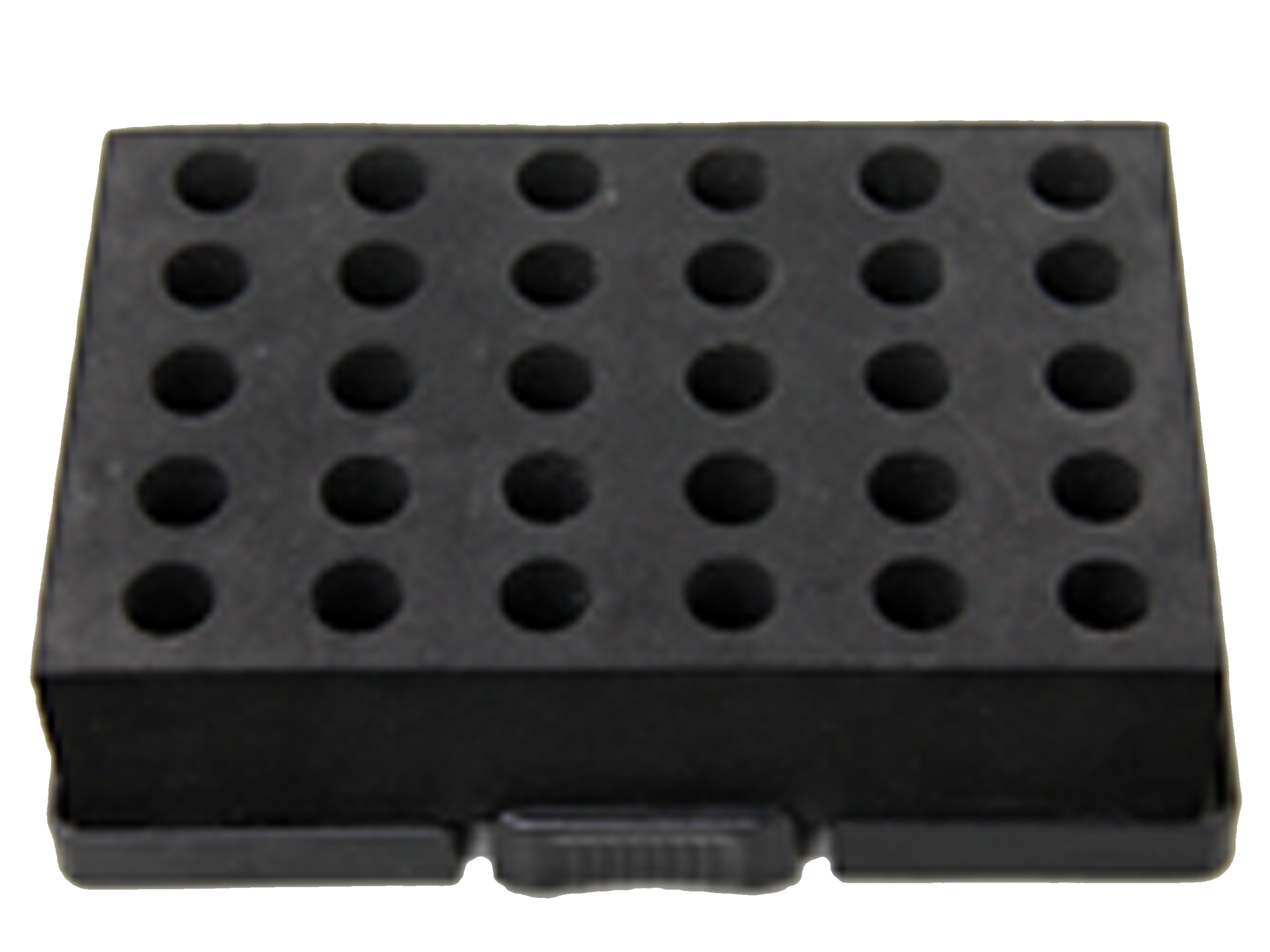

1.5/2.0 mL Adapter OSE-VX-M131

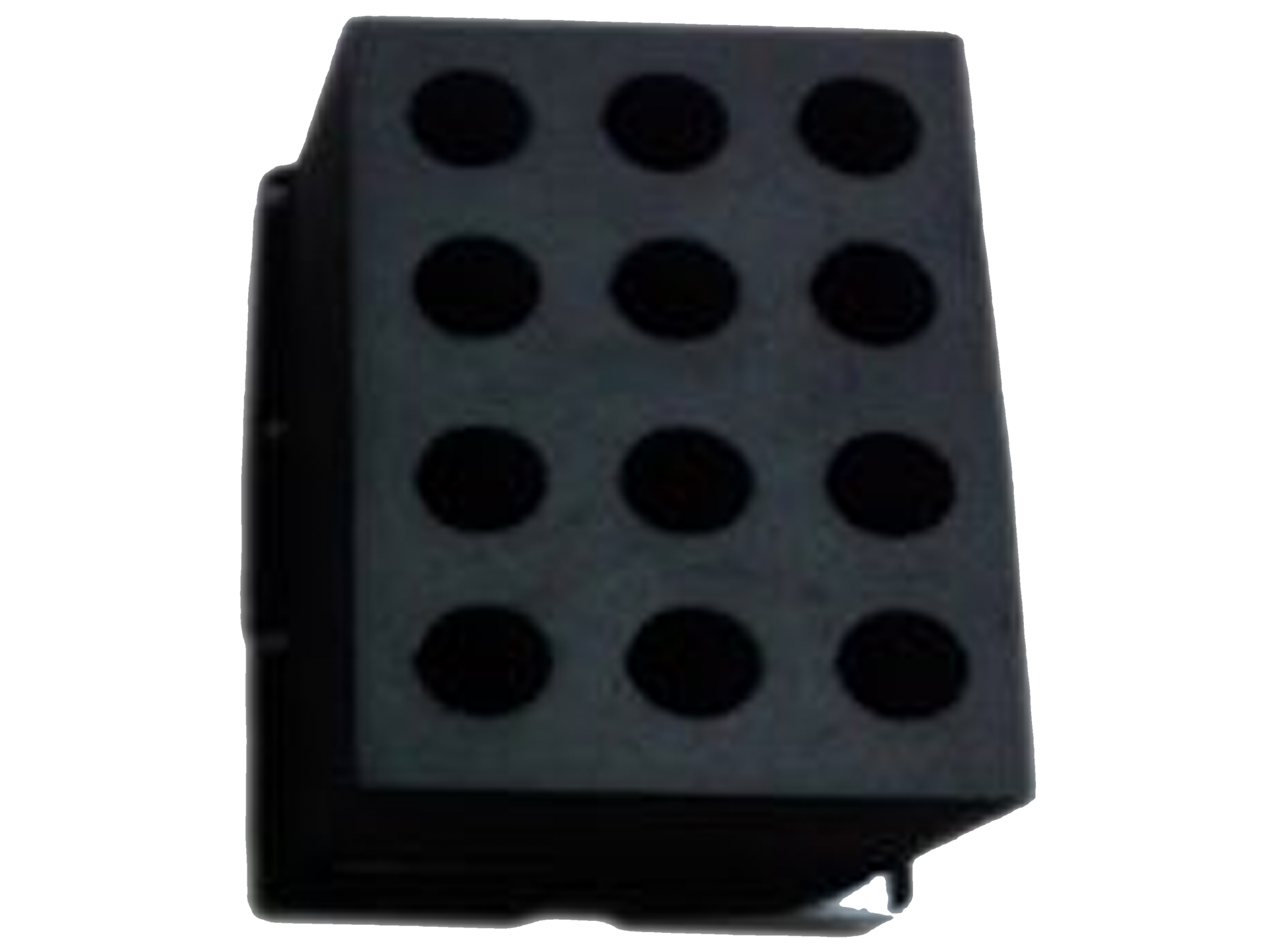

15 mL Adapter OSE-VX-M133
-
Optional Accessories

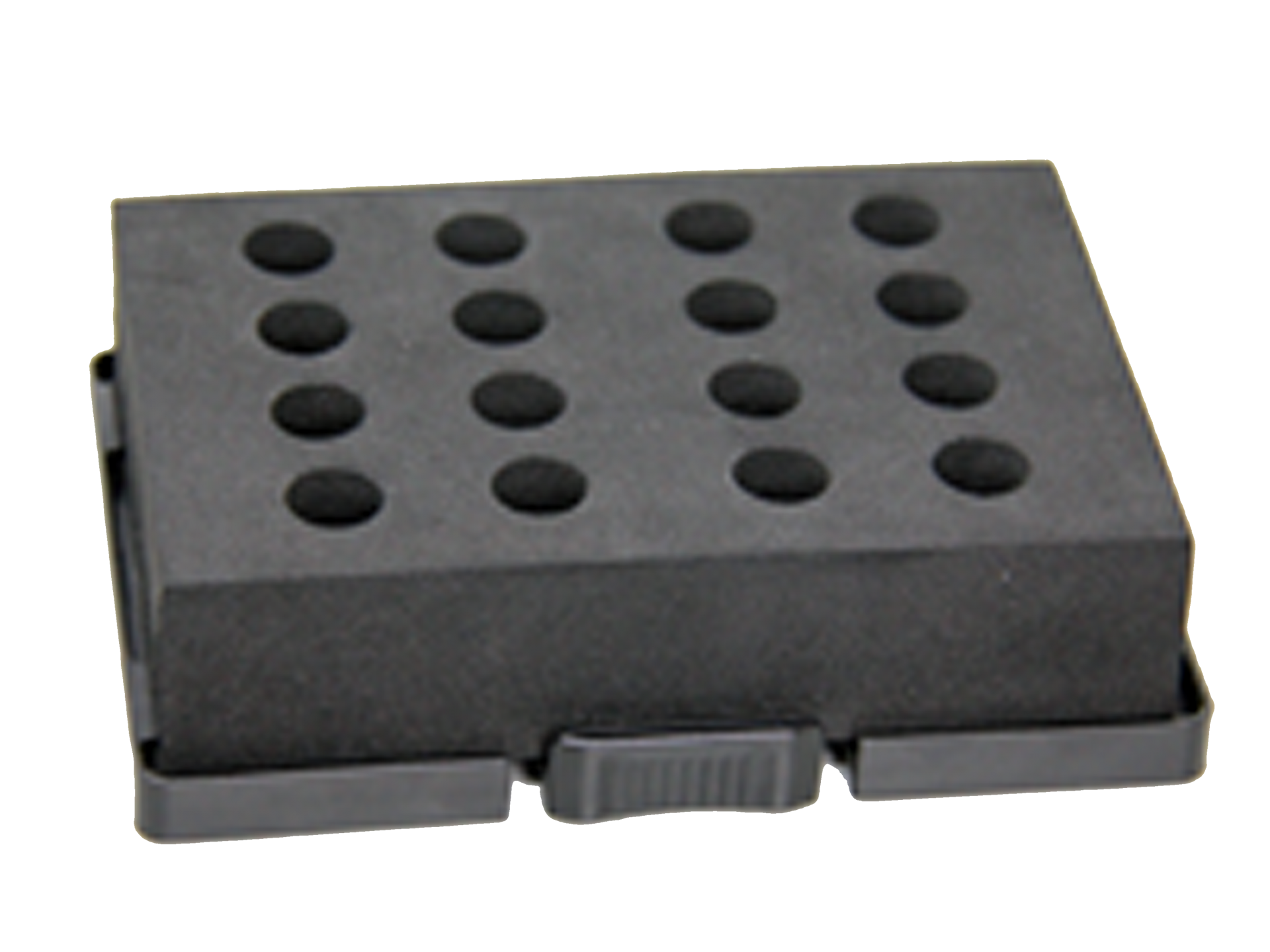

Product Name Cat. No. Product Image 5 mL Adapter
(with M130)OSE-VX-M132

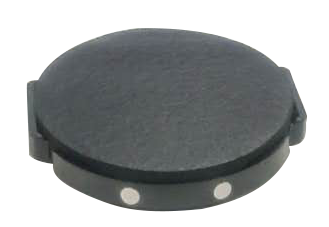

Circular Top
(with M141)OSE-VX-M140

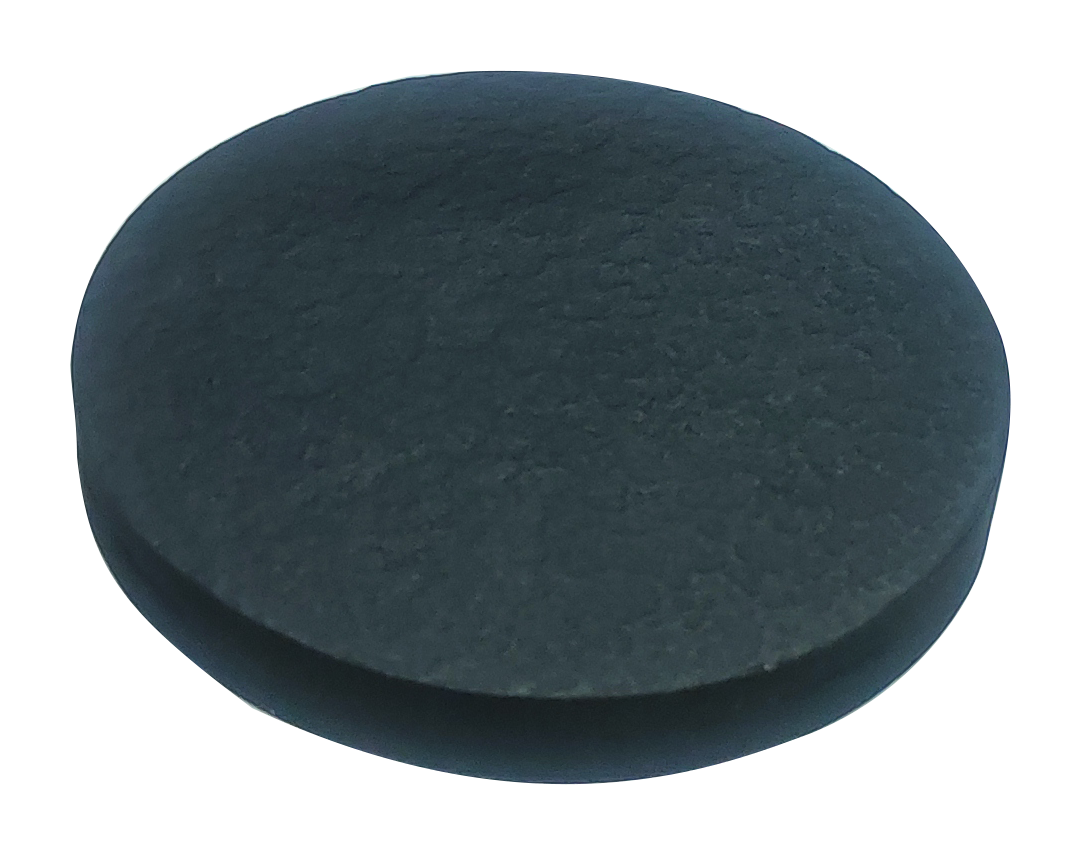

Circular Foam Adapter
(use with M140)OSE-VX-M141
-
FAQ
What laboratory applications is the TGyrate Master Vortex designed for?
The TGyrate Master Vortex is suitable for molecular biology, biotechnology, microbiology, clinical diagnostics, pharmaceutical research, PCR preparation, reagent mixing, cell suspension preparation, and routine laboratory sample processing.What types of tubes and vessels are compatible with the TGyrate Master Vortex?
The mixer supports a wide range of sample containers through interchangeable accessories, including microcentrifuge tubes, centrifuge tubes, test tubes, and microplates. Optional adapters allow users to accommodate different tube sizes and laboratory workflows.What is the speed range of the TGyrate Master Vortex?
The instrument provides variable speed control from 200 to 3000 rpm, enabling efficient mixing for both gentle sample resuspension and high-speed vortex applications.Can the TGyrate Master Vortex be used with microplates?
Yes. When equipped with the appropriate microplate platform, the mixer can effectively mix samples in microplates while maintaining stable and reproducible vortex performance.What is the difference between Touch mode and Continuous mode?
Touch mode initiates mixing when pressure is applied to the platform, making it ideal for quick sample processing. Continuous mode allows uninterrupted operation and is suitable for longer mixing procedures and repetitive laboratory tasks.Does the TGyrate Master Vortex include a timer function?
Yes. Users can program mixing times from 1 to 999 seconds, 1 to 999 minutes, or select continuous operation mode to support a variety of laboratory protocols.Why choose a digital vortex mixer instead of a standard vortex mixer?
A digital vortex mixer offers greater precision and reproducibility through adjustable speed and timer settings. This allows users to standardize mixing conditions and achieve more consistent experimental results across workflows.How do I choose the right vortex mixer for my laboratory?
When selecting a vortex mixer, consider sample volume, vessel format, speed range, accessory compatibility, and workflow requirements. Digital vortex mixers are recommended for applications that require precise control and reproducible mixing results.What are the key advantages of the TGyrate Master Vortex?
Key advantages include variable speed control up to 3000 rpm, dual operating modes, programmable timing, compatibility with multiple adapters and microplates, stable operation, low-noise performance, and durable laboratory-grade construction.
-
