Single Column

TIANquick Midi Purification Kit

The unique spin column and buffer make the recovery rate of target DNA up to 80%

Catalog number / packaging

Cat. no

ID

No. of preps

4992440

DP204-03 200

4992439

DP204-02 50
  • Storage

    Room temperature (15-25℃ )
  • Description

    The TIANquick Midi Purification Kit adopts a unique adsorption column to efficiently and specifically bind DNA fragments while maximally removing impurities such as proteins, ions and small primers. This kit can be used for PCR product recovery as well as enzymatic reaction solution recovery (enzymatic digestion, ligation, probe labeling, etc.). 100 bp-20 kb DNA fragments can be recovered with the recovery rate up to 80% (for DNA fragments< 100 bp or > 10 kb, the recovery rate is 30%-50%). The purified DNA can be directly used for molecular biology experiments such as ligation, transformation, restriction enzyme digestion, sequencing, hybridization, etc.
  • Features

    ■ Fastest: DNA recovery can be completed within 15 minutes, and multiple samples can be handled at the same time.

    ■ Minimal steps: Easy to operate with only a few centrifugation steps.

    ■ Highest efficiency: The unique spin columns and buffers ensure maximal purity of target DNA for each prep.

    ■ Handling capacity: The maximal amount of DNA that can be adsorbed by each column is 10 μg.

Experimental Example

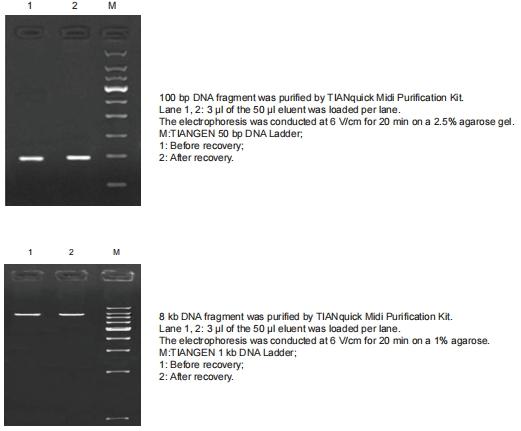

  • 100 bp DNA fragment was purified by TIANquick Midi Purification Kit.

    Lane 1, 2: 3 μl of the 50 μl eluent was loaded per lane.

    The electrophoresis was conducted at 6 V/cm for 20 min on a 2.5% agarose gel.

    M:TIANGEN 50 bp DNA Ladder;

    1: Before recovery;

    2: After recovery.

  • 8 kb DNA fragment was purified by TIANquick Midi Purification Kit.

    Lane 1, 2: 3 μl of the 50 μl eluent was loaded per lane.

    The electrophoresis was conducted at 6 V/cm for 20 min on a 1% agarose.

    M:TIANGEN 1 kb DNA Ladder;

    1: Before recovery;

    2: After recovery.
