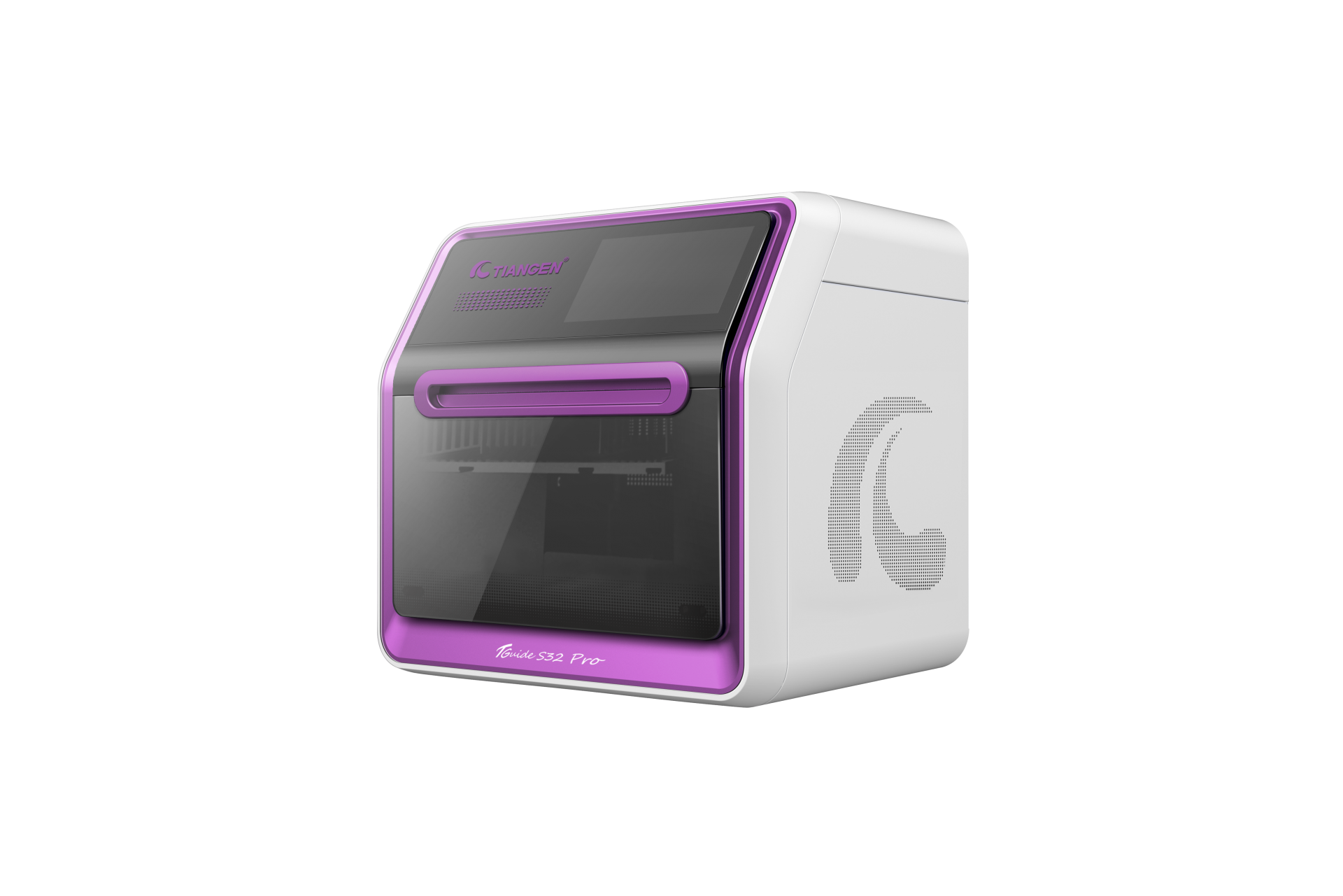

TGuide S32 Automated Nucleic Acid Extractor

Magnetic rods method for nucleic acid purification, a new solution for high-quality, fast and automated nucleic acid extraction

Catalog number / packaging

Mat. No	Ref. No	No. of preps
	YOSE-S32	1 set

Manual Inquire

Features

● The unique magnetic rod vibration mode has large vibration amplitude and high precision.

● New strong binding mode, good magnetic beads binding effect and high nucleic acid yield.

● Limit position protection function, stable and orderly operation of the instrument to avoid failure.

● Windows Pad and screen button double control mode, powerful program editing function, intuitive, simple and convenient operation.

● Smart contamination control system and UV sterilization module can effectively avoid cross contamination between sample wells and batches.

● Relying on TIANGEN nucleic acid extraction and purification reagent platform, it provides a series of comprehensive, complete and high-quality automation solutions.

■独特なマグネットバー方式により、棒磁石の振動幅が大きく、精度が高い

■新しい強力な吸着様式で、磁性ビーズの吸着効果が高く、核酸の収率が高い

■限界位置保護の機能により、装置の運転がスムーズで秩序正しく、操作上の安全を保証します。

■Windows Padと装置のボタン操作によるダブル制御モードを備え、強力なプログラム編集機能を持ち、直感的かつシンプルで作業性がよい

■コンタミネーション防止システムと紫外滅菌モジュールにより、ウェル間及びプレート間のクロスコンタミネーションを確実に防止することができます。

■本社の核酸抽出精製試薬プラットフォームに頼り、全面的かつ完全、優良な自動化ソリューションを提供する
Description

TGuide S32 Automated Nucleic Acid Extractor adopts the latest magnetic rods binding and transfer method. 96-deep well plates and different kinds of magnetic beads extraction reagents are applied to automatically extract and purify nucleic acids from 1-32 blood/cells/ tissues/viruses and other samples. The instrument uses the special magnetic rods to bind, transfer and release magnetic beads, so as to realize the automatic transfer of magnetic beads and nucleic acids.

TGuide S32全自動核酸抽出精製装置は最新のマグネットバーにより核酸の吸着・転移と精製し、96ディープウェル・プレートを利用し、多種の磁性ビーズ用核酸抽出試薬と組み合わせて、1から32までのサンプルから核酸を同時に抽出・精製し、血液、細胞組織およびウィルス等のさまざまなサンプルから高効率で核酸を自動的に抽出・精製することが可能です。本装置は、独自のマグネットバーで磁性ビーズを吸着・移動・放出し、磁性ビーズと核酸の転移を実現でき、自動化の程度を高めます。

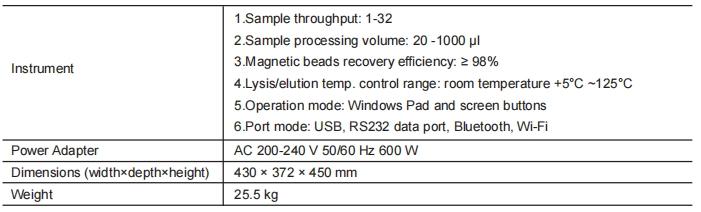

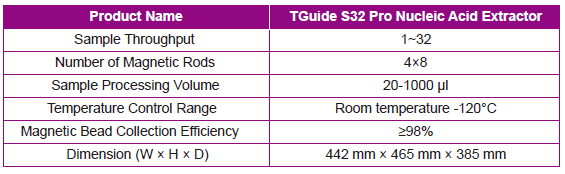

Parameters

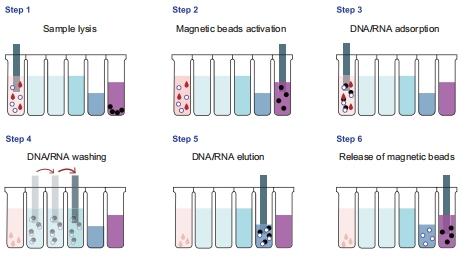

Principle

After the sample is lysed by the lysis buffer, the nucleic acid dissociated from the lysis/binding solution is specifically bond by the magnetic beads. Through the cooperation of the magnetic rod and the magnetic tip comb, the magnetic binding, transfer, release, mixing and other actions are completed to separate the magnetic beads binding the nucleic acid from the lysis/binding solution. Various impurities that are not specifically bond to the magnetic beads are removed in the washing well, and finally the nucleic acid molecules are dissolved in the elution buffer.

After the sample is lysed by the lysis buffer, the nucleic acid dissociated from the lysis/binding solution is specifically adsorbed by the magnetic beads. Through the cooperation of the magnetic rod and the magnetic tip comb, the magnetic attraction, transfer, release, mixing and other actions are completed to separate the magnetic beads adsorbing the nucleic acid from the lysis/binding solution. Various impurities that are not specifically bound to the magnetic beads are removed in the washing well, and finally the nucleic acid molecules are dissolved in the elution buffer.

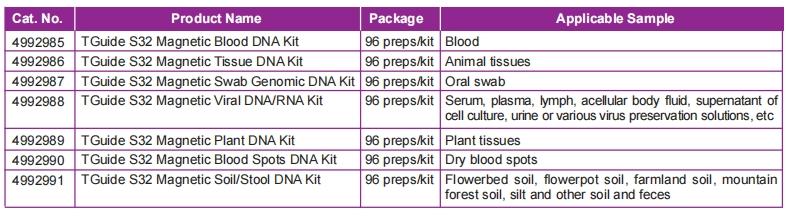

Required Reagents

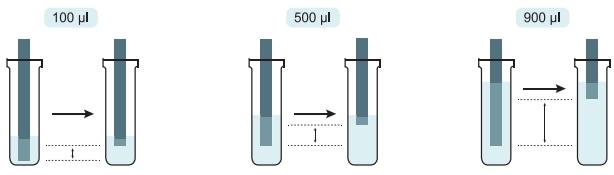

Unique Movement Mode of Magnetic Rod

The driving device adopts a stepping motor. With large vibration amplitude of the magnetic rod, the vibration amplitude is automatically adjusted according to the volume of the solution, making sure a good mixing effect. The transmission device adopts a ball screw, leading to stable operation of magnetic rod, high precision and long service life. All moving parts are equipped with limit position protection function to ensure smooth and orderly operation of the instrument to avoid failures.

The driving device adopts a stepping motor. With large vibration amplitude of the magnetic rod, the vibration amplitude is automatically adjusted according to the volume of the solution, making sure a good mixing effect. The transmission device adopts a ball screw, with stable operation of magnetic rod, high precision and long service life. All moving parts are equipped with limit position protection function to ensure smooth and orderly operation of the instrument to avoid failures.

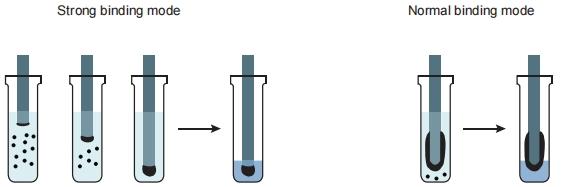

New Strong Adsorption Mode

Through a newly designed strong binding mode, magnetic beads are bond on the tip of the magnetic rod, so that under the condition of small elution volume, eluent can still cover all magnetic beads. The magnetic beads have good binding effect and high nucleic acid yield.

Through a newly designed strong adsorption mode, magnetic beads are adsorbed on the tip of the magnetic rod, so that under the condition of small elution volume, eluent can still cover all magnetic beads. The magnetic beads have good adsorption effect and high nucleic acid yield.

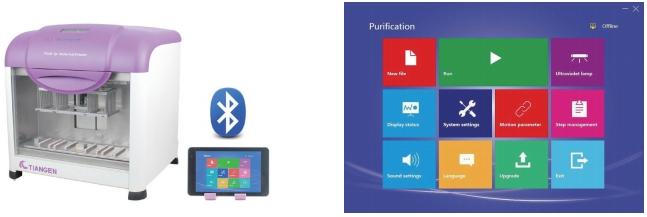

Dual Control Mode of Windows Pad and Screen Buttons

On the basis of the classic button operation, the TGuide S32 can also be remotely controlled with high-performance Windows Pad. The interactive interface of Windows application program is perfectly set, which is more in line with customers’ normal office working and learning habits.

On the basis of the classic button operation, it is remotely controlled with high-performance Windows Pad. The interactive interface of Windows application program is perfectly set, which is more in line with customers’ normal office work and learning Windows usage habits.
Experimental Example

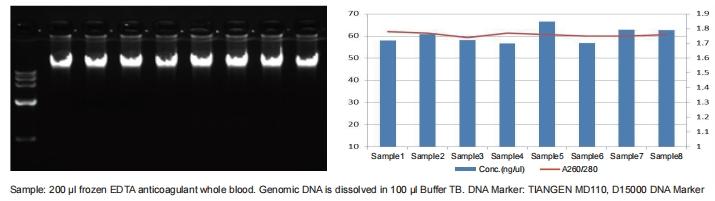

Blood Genomic DNA Extraction:

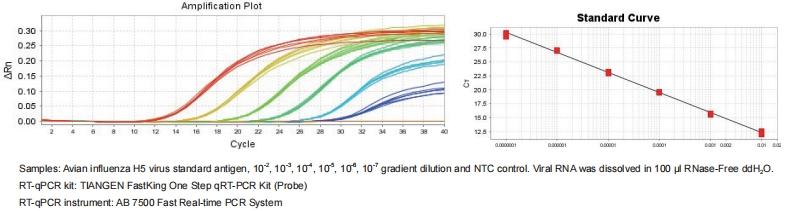

Virus DNA/RNA Extraction:

Animal Tissues Genomic DNA Extraction:

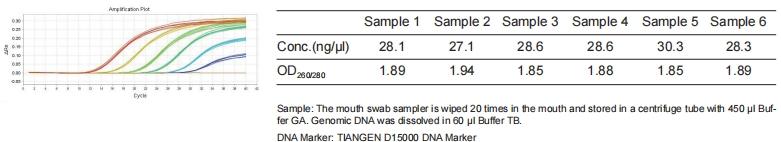

Mouth Swabs Genomic DNA Extraction:
