TGuide S96 Automated Nucleic Acid Extractor

Very high throughout, with 192 samples be extracted at one run

Catalog number / packaging

Mat. No	Ref. No	No. of preps
	OSE-S96-01	1 set
	OSE-S96-02	1 set
	OSE-S96-03	1 set

Manual Inquire

Description

TGuide S96 Automated Nucleic Acid Extractor adopts the latest magnetic rod adsorption and transfer magnetic beads method. 96-deep well plates and different kinds of magnetic beads extraction reagents are applied to automatically extract and purify nucleic acid from 1-192 blood/cells/tissues/viruses and other samples.

This extractor can be equipped with an 24 flux module which has good adaptability to large-volume samples. It is equipped with TIANGEN pre-packed reagents and can simultaneously extract 1-24 samples. The maximum sample volume handled by the instrument is 5 ml. It is especially suitable for extraction of free nucleic acid in serum and plasma. It has high extraction yield and good purity, and can be used in fields such as tumor detection, NIPT, etc.

TGuide S96全自動核酸抽出精製装置は最新のマグネットバーによる磁性ビーズの吸着方式を採用し、96ディープウェル・プレートとマグネットバーカバーを利用し、多種類の磁性ビーズ法により核酸抽出試薬を組み合わせると、血液、細胞、組織、ウイルスなど多種のサンプルから自動的に1-96個サンプルからDNA/RNAを分離精製することができます。

この全自動核酸抽出精製装置は24流束モジュールを配置することができ、大体積のサンプルに最適され、当社の統合試薬と組み合わせることで、同時に1-24個のサンプルを操作することができ、処理するサンプルの体積が最大5mlで、特に血清、血漿における遊離核酸の抽出に適し、抽出率が高く、純度がよく、腫瘍検査、NIPTなどの領域に利用できます。
Features

■ Extremely high throughout: 192 samples can be extracted in a single run.

■ Operation mode: 10.1-inch touch interface (Windows system)

■ Magnetic bead adsorption: Cycle adsorption, recovery efficiency ≥ 98%

■ Movement mode: Four-dimensional integrated movement, confirming the best mixing effect

■ Replaceable modules: A 24-flux modules can be provided, with flexible processing volume

■ Professional contamination prevention: Effective avoidance of cross-contamination between wells and plates

■極めて高いスループットで、単回で192個のサンプルを抽出することができる
■操作モード:10.1インチタッチの制御画面(Windowsシステム)

■磁気ビーズ吸着:循環吸着、回収効率≥98%

■運動方式:4次元一体化の運動で、均一に混合する

■モジュール交換可能:24流束モジュールの配置が可能、処理する体積が柔軟に

■プロ級の汚染防止:穴間および板間の交差汚染を多重に避ける

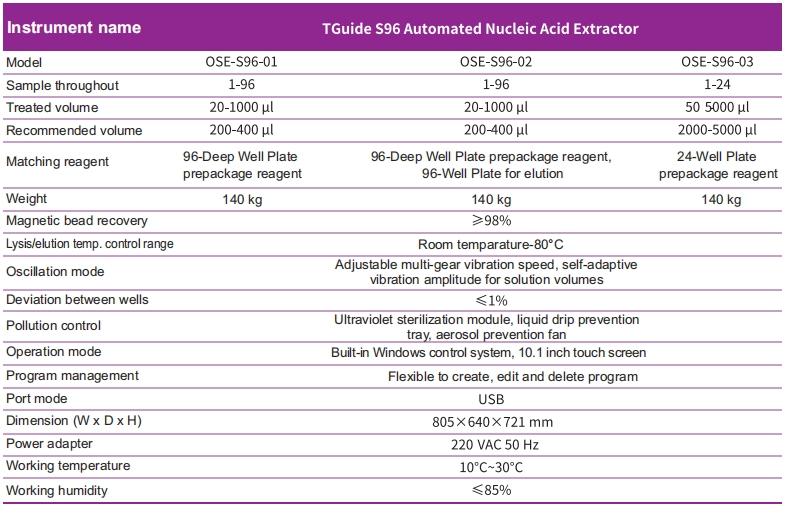

Operating Parameters

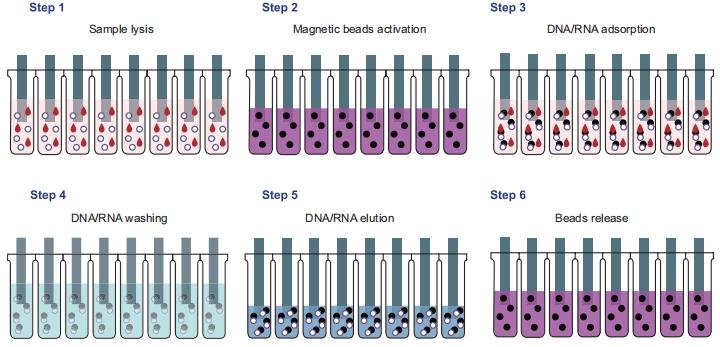

Principle
Multiple Guarantees of Ultra High Yield & Purity

Circulation adsorption mode, magnetic bead recovery efficiency ≥ 98%

Through the circulation adsorption mode with adjustable speed, magnetic beads are adsorbed on the tip of the magnetic rod during the slow descending process of the magnetic rod, so that under the condition that the elution volume is small, the eluent can still cover all the magnetic beads and circulate for many times, and even the magnetic beads with small particle sizes can be effectively adsorbed.

Circulation adsorption mode, magnetic bead recovery efficiency ≥ 98%

Through the circulation adsorption mode with adjustable speed, magnetic beads are adsorbed on the tip of the magnetic rod during the slow descending process of the magnetic rod, so that under the condition that the elution volume is small, the eluent can still cover all the magnetic beads and circulate for many times, and even the magnetic beads with small particle sizes can be effectively adsorbed.
Four-Dimensional Integrated Motion Mode Ensures The Best Blending Effect

■ The four-dimensional integrated motion mode of X/Y/Z motion of the mechanical arm integral module and vibration of the mixing parts ensures stable operation and high precision of the instrument;

■ The instrument has high oscillation frequency and adjustable multi-gear, which is suitable for different reagent integration schemes;

■ The vibration amplitude can be adaptively adjusted according to the solution volume set by the user, thus achieving the best experimental mixing effect.

■ The four-dimensional integrated motion mode of X/Y/Z motion of the mechanical arm integral module and vibration of the mixing parts ensures stable operation and high precision of the instrument;

■ The instrument has high oscillation frequency and adjustable multi-gear, which is suitable for different reagent integration schemes;

■ The vibration amplitude can be adaptively adjusted according to the solution volume set by the user, thus achieving the best experimental mixing effect.
Professional Pollution Control & Safety Guarantee

■ UV sterilization module: It can ensure that the operation in the machine reaches a sterile environment;

■ Anti-aerosol fan: Keep the air in the instrument in circulation to avoid aerosol pollution;

■ Anti-dripping disc: Effectively avoid cross contamination between wells and plates;

■ Closed operation: If the door is opened accidentally, the instrument will automatically pause to ensure safety;

■ Disposable reagent consumables: To protect the safety of laboratory personnel and laboratory environment to the greatest extent.

■ UV sterilization module: It can ensure that the operation in the machine reaches a sterile environment;

■ Anti-aerosol fan: Keep the air in the instrument in circulation to avoid aerosol pollution;

■ Anti-dripping disc: Effectively avoid cross contamination between wells and plates;

■ Closed operation: If the door is opened accidentally, the instrument will automatically pause to ensure safety;

■ Disposable reagent consumables: To protect the safety of laboratory personnel and laboratory environment to the greatest extent.
Reasonable Design of The Expandable Throughout

The matrix arrangement of double row and four plate positions not only ensures the expandability of the experiment, but also reduces the occupied area of the instrument and effectively uses the space. Under limited conditions, it can be expanded to extract 192 samples at a time, ensuring a ultra-high throughput extraction capability. With double heating modules of lysis/elution, the extraction efficiency can be improved.

The matrix arrangement of double row and four plate positions not only ensures the expandability of the experiment, but also reduces the occupied area of the instrument and effectively uses the space. Under limited conditions, it can be expanded to extract 192 samples at a time, ensuring a ultra-high throughput extraction capability. With double heating modules of lysis/elution, the extraction efficiency can be improved.
Intuitive and User-Friendly Human-Computer Interaction Interface

The 10.1-inch touch computer is equipped with Windows system and touch operation, which is simple and easy to use, conforming to the user’s usage habits. The program setting takes full account of the experimental expansibility, multi-parameter free configuration, and large integration and development space.

The 10.1-inch touch computer is equipped with Windows system and touch operation, which is simple and easy to use, conforming to the user’s usage habits. The program setting takes full account of the experimental expansibility, multi-parameter free configuration, and large integration and development space.

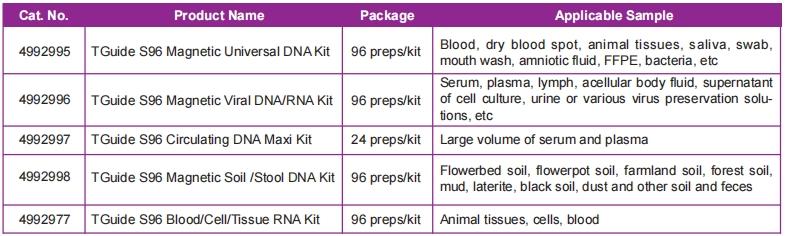

Product Guide for TGuide S96
