Extraction Kits for Automatic Instruments

TGuide Smart DNA Purification Kit

For recovery of DNA from PCR product or agarose gels.

Catalog number / packaging

Mat. No

Ref. No

No. of preps

4993550

 GDP642-DE 48
Manual Inquire Inspection report

  • Features

    ● Fast: Ultra-pure DNA can be obtained by running TGuide S16 for 40 minutes.

    ● Diversity: Single and double strand DNA fragments and circular plasmid DNA.

    ● Efficiency: Unique magnetic beads and specialized buffer make it possible to recover the largest amount of the target DNA of high purity.

  • Description

    This product adopts magnetic beads and a unique buffer system to recover DNA quickly and effciently from TAE/TBE gel. The uniquely embedded magnetic beads have a strong affnity for nucleic acid under certain conditions. When the conditions are changed, the magnetic beads can release the absorbed nucleic acid to rapidly separate and purify it. The kit can be used to remove impurities such as protein, other organic compounds, inorganic ions and oligonucleotide primers. It can recover 100 bp~15 kb DNA fragments, with a recovery rate of more than 80%.

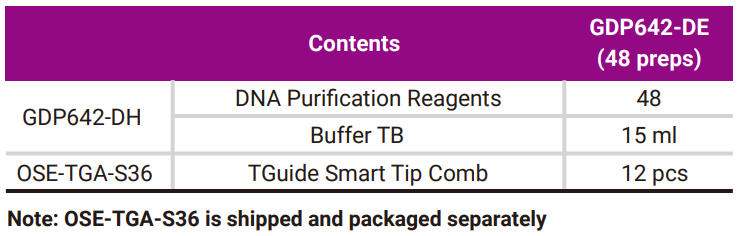

  • Kit Contents

  • Applications

    The DNA recovered by this kit can be used for a series of common downstream applications, including digestion, PCR, sequencing, library screening, ligating, transformations and other experiments.

  • Storage Condition

    The kit can be stored under dry conditions at room temperature (15~30°C) for 12 months.

  • Important Notes

    ● To use the TGuide Smart DNA purification Kit, you must have the TGuide Smart DNA purifcation Kit (program no. DP642) installed on the TGuide S16/S32 pro Nucleic Acid Extractor.

    ● When cutting the gel, UV illumination time should be controlled to avoid damage to DNA.

    ● TAE electrophoresis buffer is optimal if the next step is more demanding.

    ● The recovery rate is affected by the initial DNA input amount and elution volume. Lower initial DNA input amount and elution volume will lead to lower recovery rate.

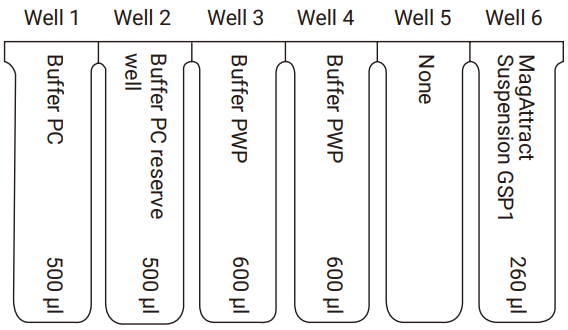

  • Reagent Composition

  • Program

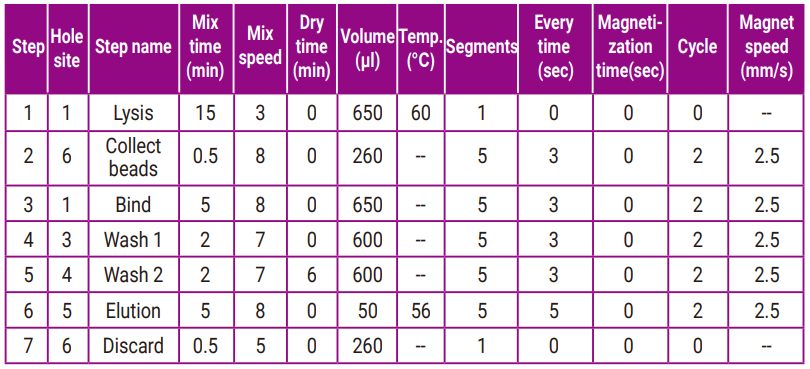

    ● The extraction process of S16 provided for DP642 is shown in the following table:

  • Related Products

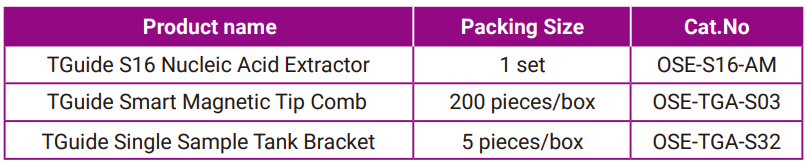

    ● Instrument and Accessories:

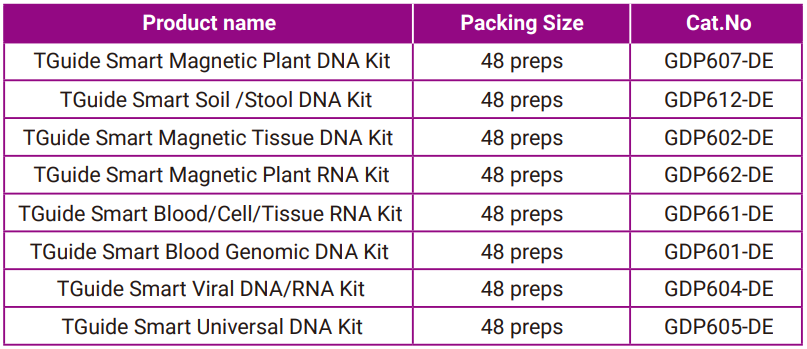

    ● TGuide Smart Reagent Kits:
