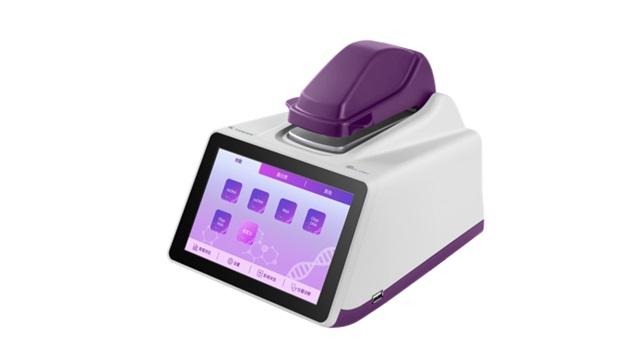

TGem Ultra is a full-spectrum micro UV-Vis spectrophotometer covering a wide wavelength range from 185 to 910 nm, providing comprehensive analysis beyond routine nucleic acid and protein quantification.

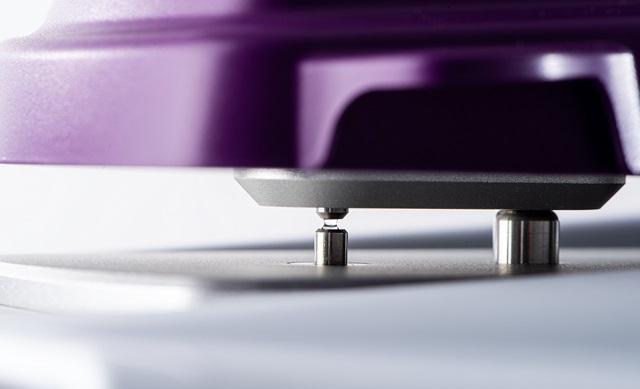

In addition to microvolume measurement (0.5–2 μl), TGem Ultra integrates both pedestal and cuvette modes in a single system, enabling flexible workflows for a broad range of laboratory applications. It supports full spectral scanning as well as customized wavelength detection, making it ideal for advanced research and complex sample analysis.

With a wide detection range from 2 to 27,500 ng/μl (dsDNA), TGem Pro enables direct measurement of high-concentration samples such as nucleic acid extraction products and PCR outputs without the need for dilution, significantly improving workflow efficiency.

The system supports a wide range of applications including dsDNA, ssDNA, RNA, oligo DNA and oligo RNA quantification, making it suitable for diverse molecular biology experiments.

For extremely low concentration samples, fluorescence-based quantification using TGem One Fluorometer is recommended for higher sensitivity.

The flagship cuvette version (OSE-260-06-AM) is equipped with a dedicated cuvette module designed for enzyme kinetic analysis and low-concentration sample measurement. With built-in temperature control (up to 37°C) and adjustable magnetic stirring (10–900 rpm), the system ensures optimal reaction conditions and improved data reproducibility for dynamic assays.

Compared to NanoDrop, which mainly focuses on rapid nucleic acid quantification, TGem Ultra offers both microvolume convenience and full UV-Vis analytical capabilities in one platform. It is an ideal solution for laboratories requiring higher flexibility, expanded applications and more advanced analytical performance.

• More Than NanoDrop – A Complete UV-Vis Solution
  TGem Ultra combines microvolume measurement with full-spectrum UV-Vis analysis, delivering greater flexibility than traditional NanoDrop systems.
• Wide Detection Range with No Dilution Required
  Covers concentrations from 2 to 27,500 ng/μl, allowing direct measurement of high-concentration samples such as extraction products and PCR products without dilution.
• Dual Measurement Modes for Maximum Flexibility
  Seamlessly switch between pedestal microvolume analysis and cuvette measurement for both high- and low-concentration samples.
• Advanced Kinetics Analysis Capability
  The cuvette module supports enzyme kinetics with real-time absorbance monitoring, ideal for dynamic experiments and research applications.
• Optimized for Biochemical Reactions
  Integrated temperature control (up to 37°C) and magnetic stirring ensure uniform mixing and stable reaction conditions.
• Full Spectrum Detection (185–910 nm)
  Enables analysis beyond nucleic acids and proteins, covering a wide range of molecules including dyes and chemicals.
• Designed for Advanced Research Labs
  Suitable for UV-Vis scanning, method development and complex molecular analysis.

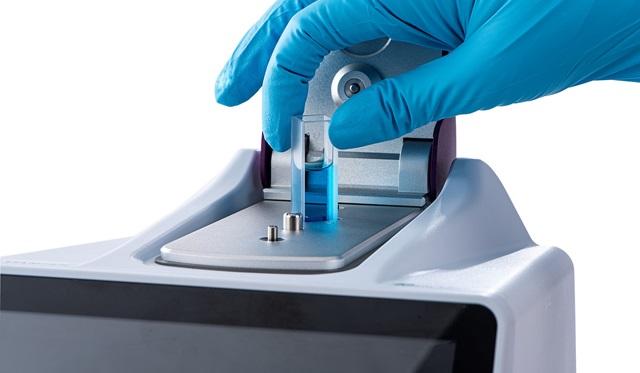

Advanced Cuvette Module for Kinetics and Low-Concentration Analysis

The flagship model (OSE-260-06) features an advanced cuvette module designed for enzyme kinetic analysis and low-concentration sample measurement. With integrated temperature control and magnetic stirring, TGem Ultra ensures precise reaction conditions and improved reproducibility for dynamic assays.

• Full wavelength range: 185–910 nm UV-Vis spectrum
• Dual measurement modes: microvolume (0.5–2 μl) and cuvette
• High-resolution spectral scanning with customizable wavelengths
• Enzyme kinetics analysis with real-time monitoring
• Magnetic stirring function: 10–900 rpm adjustable
• Temperature control up to 37°C for reaction stability
• Wide detection range: 2 ng/μl – 27500 ng/μl dsDNA
• Automatic pathlength adjustment: 0.03–1.0 mm
• Fast measurement: ≤5 seconds per test
• 7-inch touchscreen with Android system
• USB and WiFi connectivity for data export

TGem Ultra expands beyond routine microvolume analysis, enabling full UV-Vis applications and enzyme kinetics studies in a single instrument.

TGem Ultra is designed for both routine microvolume measurement and advanced UV-Vis analysis, supporting a wide range of applications from nucleic acid quantification to enzyme kinetics and molecular detection.

• Integrated Nucleic Acid, Protein and GeneChip Detection Modules
  Built-in dedicated applications for rapid analysis of dsDNA, ssDNA, RNA, oligo DNA/RNA, GeneChip and protein, enabling flexible method selection and efficient experimental workflows.
• Full Spectrum UV-Vis Analysis (185–910 nm)
  Enables absorbance measurement across a wide wavelength range for dyes, chemicals and biomolecules, supporting diverse laboratory applications.
• Enzyme Kinetics and Reaction Monitoring
  Real-time absorbance tracking in cuvette mode allows precise monitoring of enzymatic reactions, ideal for reaction rate analysis and biochemical assays.
• Low-Concentration Sample Detection
  Cuvette measurement improves sensitivity for dilute samples that are not suitable for microvolume detection.
• High-Concentration Sample Measurement
  With a wide detection range of 2–27,500 ng/μl (dsDNA), nucleic acid extracts and PCR products can be measured directly without dilution, improving workflow efficiency.
• Dual Measurement Modes for Flexible Workflows
  Combines microvolume (0.5–2 μl) and cuvette measurement in one system, supporting both rapid routine testing and advanced analysis.
• Advanced Reaction Control (OSE-260-06 only)
  The flagship model integrates temperature control (up to 37°C) and adjustable magnetic stirring (10–900 rpm), ensuring uniform mixing and stable reaction conditions for enzyme kinetics and biochemical experiments.
• UV-Vis Spectral Scanning and Method Development
  Supports customizable wavelength scanning for assay development, validation and research optimization.
• Cell Density Measurement (OD600)
  Accurate monitoring of microbial growth using cuvette mode, suitable for microbiology and fermentation workflows.
• Advanced Life Science Research
  Suitable for molecular biology, biochemistry, pharmaceutical research and interdisciplinary studies, where high flexibility and expanded analytical capabilities are required.

Which Model Should You Choose?

OSE-260-05: Ideal for full-spectrum UV-Vis analysis and routine research applications.

OSE-260-06: Recommended for enzyme kinetics, reaction monitoring and experiments requiring temperature control and stirring.
