Tube Magnetic Racks
InquireCatalog Number｜Packaging
Mat. No |
Ref. No |
No. of preps |
|
OSE-MF-01 |
OSE-MF-01 | Each |
-
Descrition

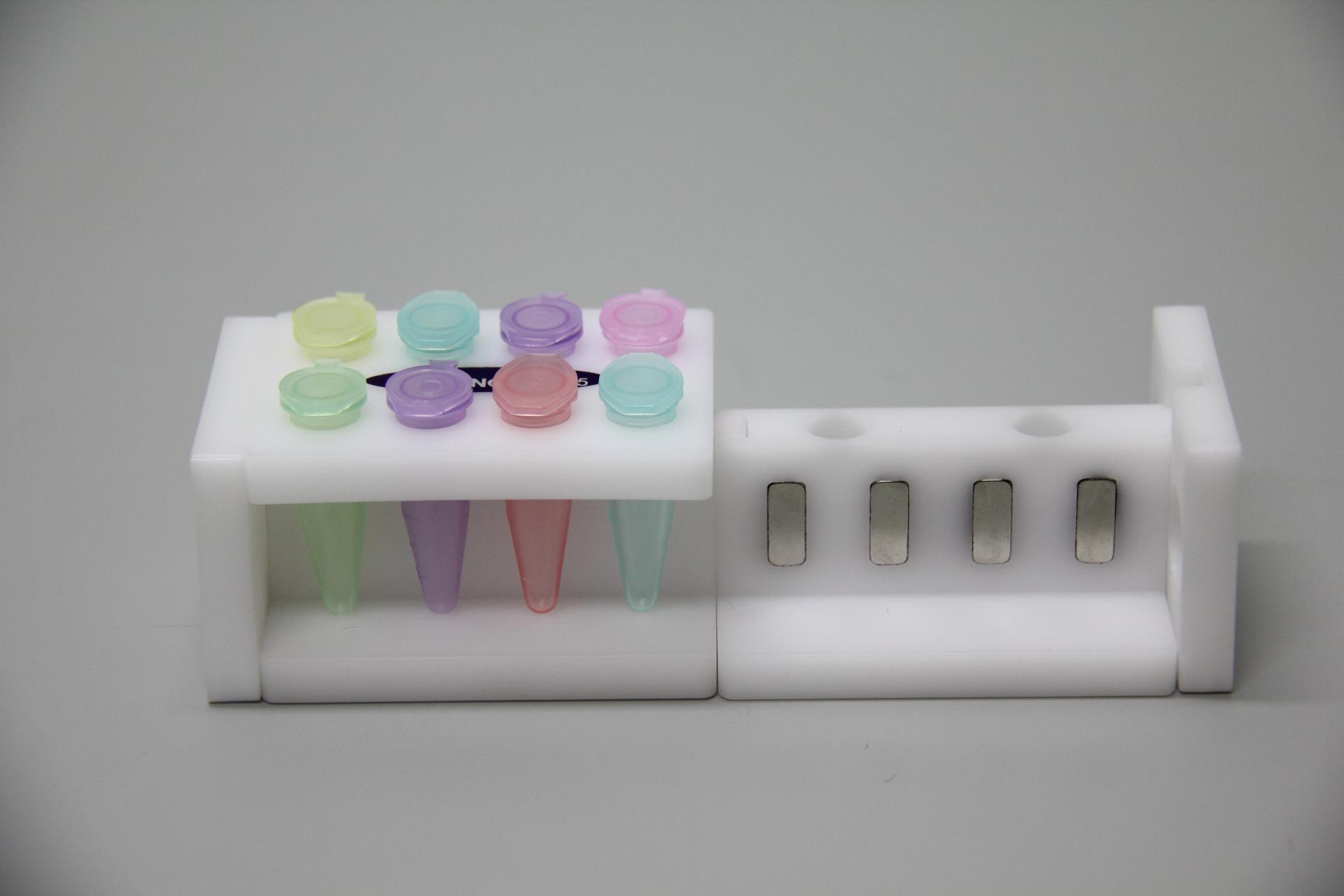

This magnetic frame is designed for efficient magnetic bead separation using both 1.5 ml and 15 ml centrifuge tubes. Equipped with high-strength magnets, it enables fast and reliable separation of magnetic beads, improving overall workflow efficiency.
The modular and compact design allows multiple units to be easily combined, offering flexible configurations for higher throughput applications. When used with magnetic bead-based extraction kits, it supports rapid isolation of DNA, RNA, proteins, cells, and other biological targets, making it suitable for routine laboratory workflows in molecular biology and life science research.
Unlike conventional magnetic racks, this modular magnetic frame design allows flexible expansion for increased throughput and customized laboratory setups.
-
Key Features
- High Efficiency: Strong magnetic field ensures rapid and effective separation of magnetic beads.

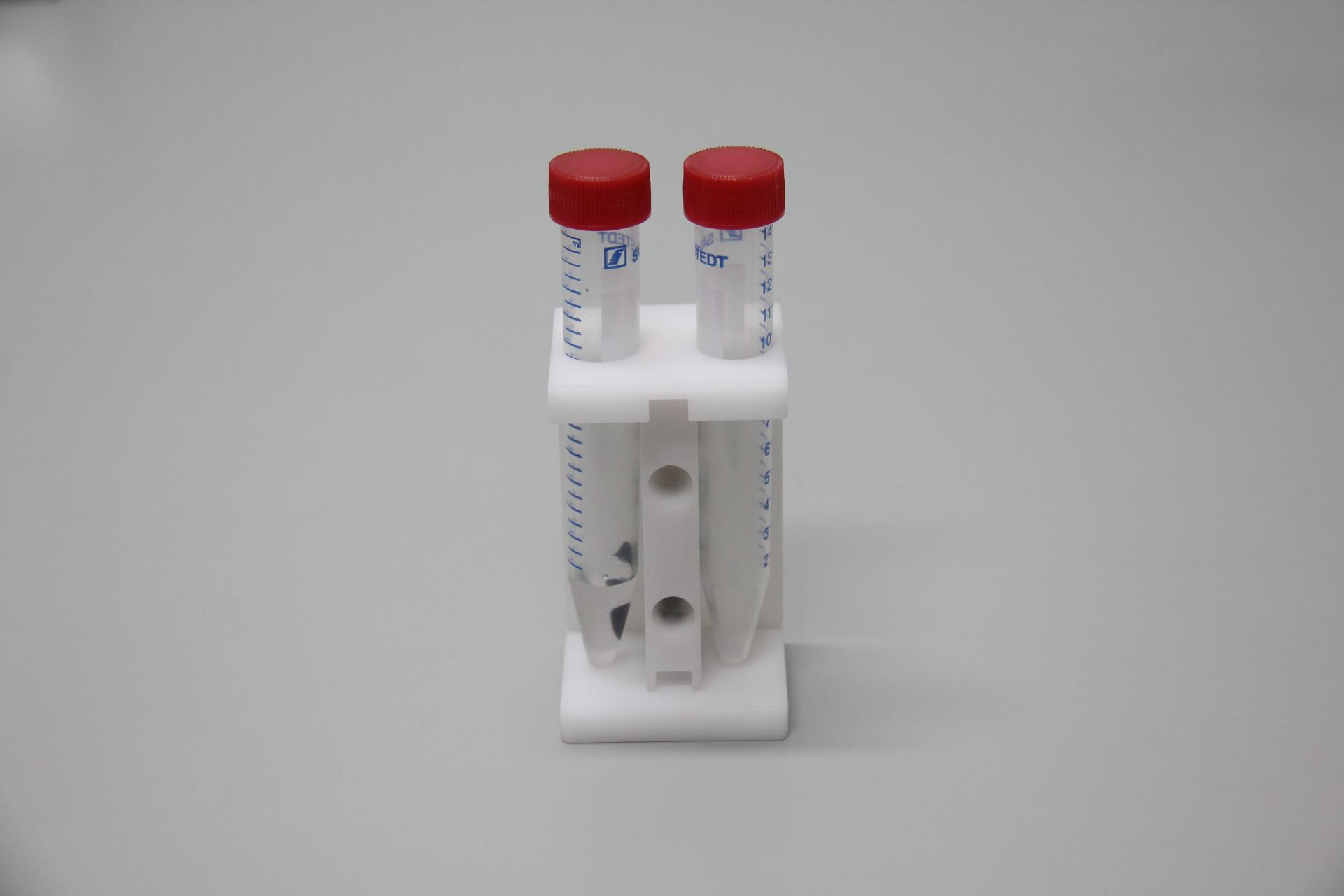

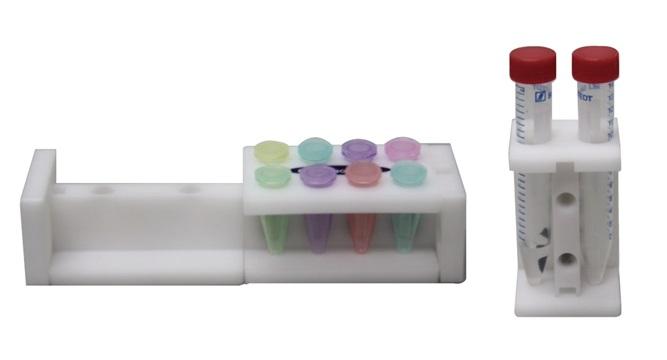

- Dual Compatibility: Compatible with both 1.5 ml and 15 ml centrifuge tubes.

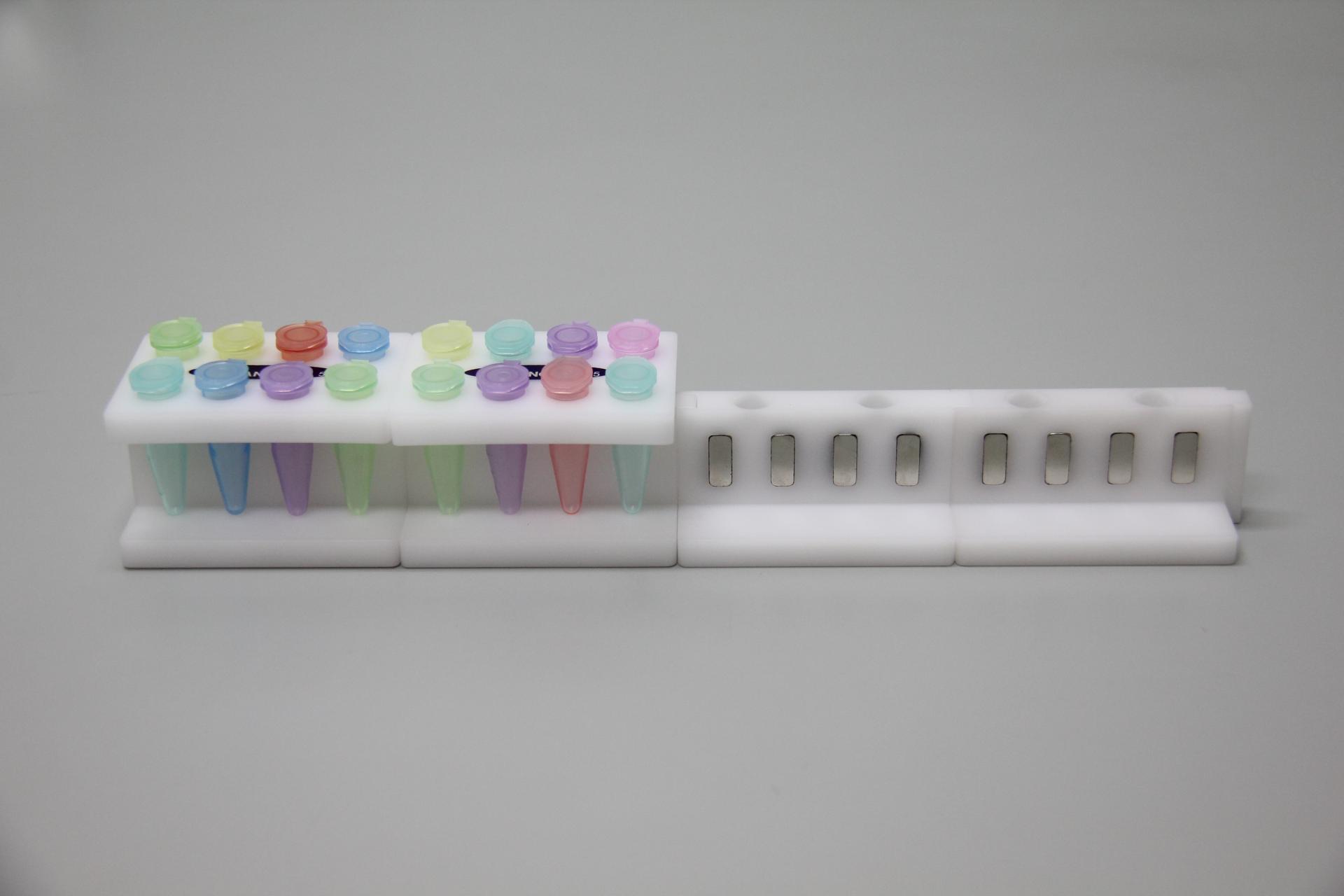

- Modular Design: Units can be easily combined for flexible configurations and scalable throughput.
- Flexible Expansion: Supports multi-unit assembly to meet higher throughput processing needs.
- Easy Magnetic Separation: Convenient magnetic attraction and separation for simplified operation.
- Compact and Durable: Made from high-quality POM material, lightweight, wear-resistant, and long-lasting.
-
Applications
- Magnetic bead-based DNA and RNA extraction
- Protein purification and cell separation
- PCR sample preparation and cleanup
- Genomics and molecular biology research
- Medium- to high-throughput laboratory workflows
-
Magnetic Rack Selection Guide
Our magnetic rack portfolio covers a wide range of applications, including centrifuge tubes, PCR tubes, and 96-well plates. Select the appropriate magnetic rack based on your sample type, tube format, and throughput requirements.
Product OSE-MF-01 OSE-MF-02 OSE-MF-03 OSE-MF-04 OSE-MF-05 OSE-TGA-S04 Image
Specification 1.5 ml & 15 ml tubes, 2×4 wells 15 ml tubes, 2×6 wells 0.2 ml PCR tubes/plates, 13×8 wells 0.2 ml PCR tubes, 2×8 wells 1.5 ml tubes, 2×8 wells Magnetic rod, 12 mm exposure
OSE-MF-01
1.5 ml & 15 ml tubes, 2×4 wells
OSE-MF-02
15 ml tubes, 2×6 wells
OSE-MF-03
0.2 ml PCR tubes/plates, 13×8 wells
OSE-MF-04
0.2 ml PCR tubes, 2×8 wells
OSE-MF-05
1.5 ml tubes, 2×8 wells
OSE-TGA-S04
Magnetic rod, 12 mm exposure
-
