Small Instrument

TGyrate Vortex Basic

Simple, practical, stable and durable

Catalog number / packaging

Mat. No

Ref. No

No. of preps

OSE-VX-01

OSE-VX-01 1 set
  • Features

    Stable: The machine can keep stable when running at 3,000 rpm without any displacement.

    Low noise: Less than 60 db.

    Durable: Special durable rubber is selected for the vortex head, with no falling chips.

    Efficient: The highest rotating speed is reached within 2 sec. Strong vortex force, which can swirl 40 ml liquid within 5 sec.

  • Description

    TGyrate Vortex Basic is a small-sized mixer that adopts eccentric rotation to make the liquid in containers such as test tubes generate vortex, thus fully mixing samples. The instrument can be used for mixing samples in containers such as centrifuge tubes, test tubes, flasks, etc. Direct current brushless motor is selected for long service life and low noise. The instrument adopts the directly driven motor, which can generage strong vortex force, and the liquid can be quickly and evenly mixed. The standard rotary head is made of highly abrasion-resistant rubber material. The simple silica gel foot pad ensures the stability of the instrument during high-speed operation. It is easy to operate, and the two working modes-touch and continuous modes can meet different experimental requirements.

  • Parameters

  • Precautions

    ● This instrument is mainly used for mixing samples in the laboratory and should be operated by professionals;

    ● The instrument should be placed on a horizontal and stable workbench;

    ● When using optional accessories, the rotational speed should be less than 500 rpm, otherwise the instrument will swing unsteadily;

    ● It is forbidden to vortex flammable and explosive objects, and be sure to avoid corrosive objects and liquids directly contacting the instrument;

    ● Please ensure that the container is sealed before use to prevent liquid splashing;

    ● Do not block the vent;

    ● Please turn off the power when the device will be spare for a long time.

  • Quality Assurance

    The TGyrate Vortex Basic has a warranty period of 12 months. Damage caused by improper operation or unauthorized modification with spare parts or accessories not provided by TIANGEN is not covered by the warranty. The warranty does not cover the damage caused by normal spoilage, radioactive contamination or improper cleaning.

  • Optional Accessories

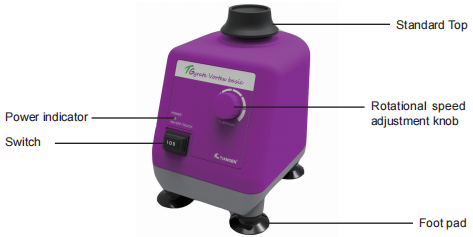

  • Schematic Diagram of Instrument

  • Instrument Installation

    Carefully unpack the outer package of TGyrate Vortex Basic according to the following steps:

    ● Remove the filling material from the top.

    ● Remove the instrument from the foam shell, and place it on a horizontal, stable experimental bench.

    ● Remove the external protective material from the instrument.

  • Operation Guide

    ● The instrument should be placed on a horizontal workbench to ensure stable placement of the instrument during use.

    ● Connect the instrument to power supply, and the adapter provides 12V DC voltage.

    ● To select the working mode, adjust the switch, with "ON" controlling the continuous working mode and "TOUCH" being used for the touch working mode. To adjust the rotational speed, turn the rotational speed adjustment knob.

    ● When in touch working mode, press the bottom of the centrifuge tube against the concave part of the standard top, run the instrument to mix the samples; when in the continuous working mode, put the bottom of the centrifuge tube on the concave part of the standard top and mix the samples evenly.

  • Maintenance and Service

    Before maintenance and service, please make sure that the instrument is powered off and the power line is disconnected. Customers are advised to wipe the surface of the instrument with 75% ethanol or a non-corrosive cleaning detergent with a pH of 7. Please ensure that all parts of the instrument are completely dried before running the instrument, and be careful to not immerse or wet the instrument with liquid.
