Features
● Efficient: Strong vortex force, which can realize rapid and uniform mixing of liquid.
● Stable: The balance blocks and guide rail structure ensure the steady of the machine.
● Low noise.
● Wide application: A variety of blocks are available.
● Simple and fast: Digital display, knob stepless speed regulation.
● Working mode: Touch/Continuous.
-
Description
TGyrate Master Vortex (Digital Display Version) is a multi-sample mixer that adopts eccentric rotation to make the liquid in containers such as test tubes generate vortex, thus fully mixing samples. The instrument can be used for mixing samples in containers such as tes tubes, centrifuge tubes, microtiter plates, etc. This machine adopts the directly-driven induction frequency conversion motor with no belt loss parts, ensuring a long service life and low noise. It has strong vortex force with the amplitude 4.5 mm, which can realize rapid mixing of liquid. There are two working modes, i.e. touch and continuous, and a variety of clamps can be selected to meet the experimental requirements. The metal body, balance weight design and unique guide rail structure ensure the uniform and stable operation of the instrument.
-

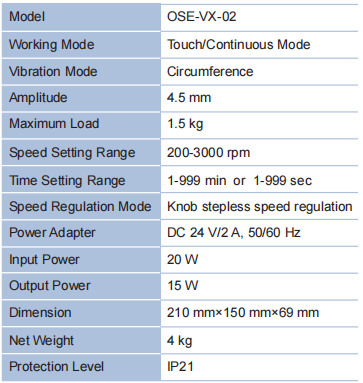

Parameters
-

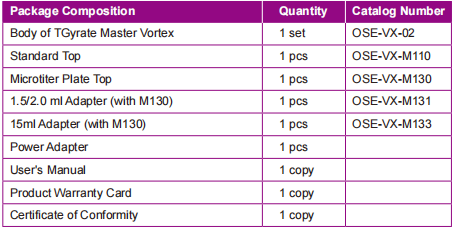

Package Contents
-
Precautions
● This instrument is mainly used for the mixing of samples in the laboratory and should be operated by professionals;
● The instrument should be placed on a horizontal and sturdy workbench;
● Switch between Touch/Continue mode when using Standard Top. Only the Continue mode is available when using other adapters;
● Mixing flammable and explosive objects is prohibited. Exposure to corrosive objects and liquids should be avoided;
● Please make sure the sample to be mixed is sealed before use to prevent the liquid from spilling;
● Do not block the vents;
● Turn off the power supply if the instrument is not used for a long time.
-
Quality Assurance
The TGyrate Master Vortex has a warranty period of 12 months. Damage caused by incorrect operation or unauthorized modification using accessories or spare parts not provided by TIANGEN is not covered by the warranty. The warranty does not cover normal spoilage, radioactive contamination, or damage caused by improper cleaning.
-
Standard Accessories
-
Optional Accessories
-
Instrument Installation
Carefully unpack the TGyrate Master Vortex by following the steps described below:
● First, remove the top padding material.
● Remove the instrument from the foam housing and place it on a horizontal, sturdy laboratory bench top.
● Remove the instrument's external packaging protection material.
● Place the instrument in a suitable operating area, plug in the power cord, make sure the power is OFF, and select the required spacer or fixture.
● To install the Standard Top, fix one side and stretch to fit the other side onto the oscillation plate as well.

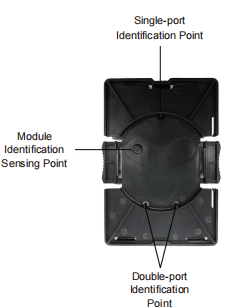

● When installing other fixtures, first judge the direction according to the corresponding identification point, then fix the Module Identification Sensing Point on one side of the card position of the oscillation plate, then gently press the other side. The "click" sound indicates the correct installation to the right position.
-

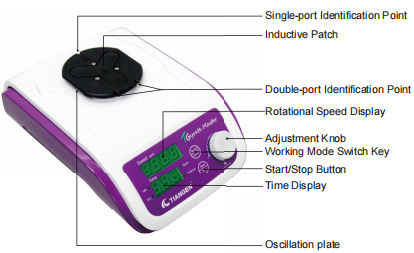

Schematic Diagram of the Instrument
-
Operation Panel
-

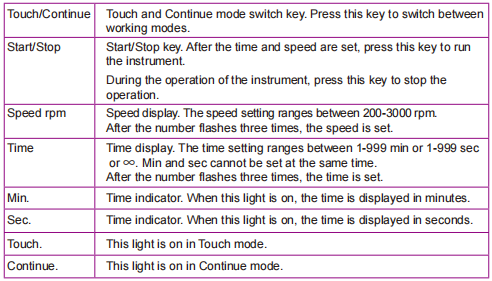

Operation Panel Description
-
Operation Guide
● This instrument should be placed on a horizontal workbench. Make sure the instrument is placed on a steady surface when used;
● Connect the instrument to a power supply, with the power adapter providing 24V DC voltage;
● Turn on the power switch on the rear side of the instrument, and the instrument should default to Continue mode;
● Press the Touch/Continue key to switch between the Touch and Continuous modes;
● Press the adjustment knob once and the speed display digit flashes, at which point rotate the adjustment knob to set the speed;
● Press the adjustment knob twice, the time display digit flashes, at which the Min indicator light is on. Rotate the adjustment knob to set the running time;
● Press the adjustment knob three times, the time display number flashes, at which the Sec indicator light is on. Rotate the adjustment knob to set the running time;
● Press the adjustment knob four times, the time display shows "- - -", the running time is set to ∞;
● After setting, press the Start/Stop key to run the instrument;
● In Touch mode, only the running speed can be set. In this mode, the Time only counts;
● The fixtures will automatically be recognized. Except for the Standard Top, for the other fixtures, the speed is limited to 1300 rpm.
-
Maintenance and Care
Before cleaning, make sure the instrument is turned off and disconnect the power cord. We recommend that customers clean the instrument surface with 75% industrial alcohol or a non-corrosive washing solution with pH = 7. Ensure all parts of the instrument are completely dry before running. Ensure all parts of the instrument are completely dry before running. Be careful not to immerse the instrument in liquid or wet the instrument with liquid.
-
