Small Instrument

TGyrate Mini Vortex

Powerful and efficient vortex mixer

Catalog number / packaging

Mat. No

Ref. No

No. of preps

OSE-VX-03

OSE-VX-03 1 set
  • ​Features

    High vortex strength: 3000 rpm, fast mixing.

    DC brushless motor: long service life.

    Triangular silicone head top: durable and replaceable.

    Silicone foot pad: runs at maximum speed without displacement.

    ● Low noise.

  • ​Description

    The TGyrate Mini Vortex Mixer is a mini mixer that uses eccentric rotation to create a vortex of liquid in the tube to mix the sample. It can be used for mixing samples in various sizes of centrifuge tubes. The Mini Vortex Mixer is equipped with a brushless DC motor for long service life and low noise, and a direct driven motor for high vortex force, allowing for fast sample mixing.

  • Parameters

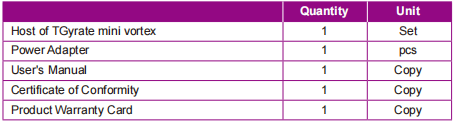

  • Package Contents

  • Precautions

    ● This instrument is mainly used for mixing samples in the laboratory and should be operated by professionals.

    ● This instrument should be placed on a sturdy horizontal workbench.

    ● Mixing flammable and explosive objects is prohibited. And exposure to corrosive objects and liquids should be avoided.

    ● If the instrument slips during operation, clean the table and footpad with a damp cloth.

    ● Ensure the container is sealed before use to prevent spilling of liquid.

    ● Turn off the power supply if the instrument is not used for a long time.

  • Quality Warranty

    The TGyrate Mini Vortex has a warranty period of 12 months.

    Damage caused by incorrect operation or unauthorized modification with accessories or spare parts not provided by TIANGEN is not covered by the warranty. The warranty does not cover normal spoilage, radioactive contamination, or damage caused by improper cleaning.

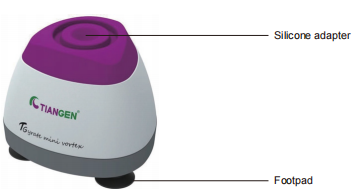

  • Product Diagram

  • Operation Guide

    ● The instrument should be placed on a horizontal workbench. Make sure the table and feet are clean and free of dust. Place the instrument carefully, and press the instrument gently downward to ensure that the feet of the instrument firmly stick to the table.

    ● Connect the instrument to a power supply, with the power adapter providing 12V DC voltage.

    ● Press the central dish part of the silicone adapter with the bottom of the centrifuge tube, run the instrument and mix the sample.

    Note: Keep the sample container upright and apply the minimum pressure required during mixing. If the silicone adapter is excessively worn, please contact TIANGEN for disassembly and replacement.

  • Maintenance and Care

    Make sure the instrument is turned off and disconnect the power cord. We recommend that customers use 75% alcohol or pH = 7 non-corrosive washing liquid to the instrument's surface. Ensure all parts of the instrument are completely dry before running. Be careful not to immerse the instrument in liquid or wet the instrument with liquid.
