The 1 kb Plus DNA Ladder consists of twelve double-stranded DNA bands that are suitable as molecular weight standards for agarose gel electrophoresis.

Since this product is premixed with 1× Loading Buffer, it is convenient to load 3~6 μl of this product to agarose gel directly.

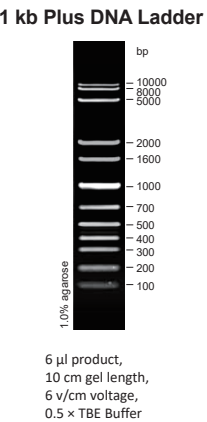

The ladder is composed of twelve individual DNA fragments (in base pairs): 10000, 8000, 5000, 2000, 1600, 1000, 7000, 500, 400, 300, 200 and 100. It contains one intense band (1000 bp) for easy orientation. To load 6 μl of the product will provide 50 ng per DNA fragment with one intense fragment of 100 ng.

10 mM Tris-HCl (pH 8.4)

10 mM EDTA

0.02% Bromophenol Blue

5% Glycerol

● Directly load 3~6 μl of this product to the agarose gel (load 1μl product per 1 mm gel lane. The loading volume can be increased appropriately for wide lanes).

● Electrophoresis condition: 1.0% agarose gel, 4~10 v/cm voltage.

● DNA marker can be visualized using ethidium bromide under UV light.

● Directly use, do not require heating.

● For ideal results, please use new agarose gel and change electrophoresis buffer in time.
