DNA Marker

1 kb DNA Ladder

Catalog number / packaging

Mat. No

Ref. No

No. of preps

4992945

GMD111-01 50 lanes

4992946

GMD111-02 200 lanes
  • Storage Condition

    -30~-15°C for 2 years. For frequently use, it can be stored at 2-8°C for 3 months.
  • Concentration

    About 0.08 mg DNA/ml
  • Description

    The 1 kb DNA Ladder marker consists of nine double-stranded DNA bands that are suitable as molecular weight standards for agarose gel electrophoresis.

    Since this product is premixed with 1× Loading Buffer, it is convenient to load 3~6 μl of this product to agarose gel electrophoresis directly.

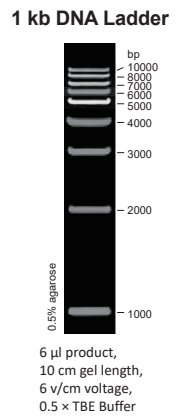

    The ladder is composed of nine individual DNA fragments (in base pairs): 10000, 8000, 7000, 6000, 5000, 4000, 3000, 2000, and 1000. It contains one intense band (5000 bp) for easy orientation. To load 6 μl of the product will provide 50 ng per DNA fragment with one intense fragment of 100 ng.

  • Buffer Contents

    10 mM Tris-HCl (pH 8.4)

    10 mM EDTA

    0.02% Bromophenol Blue

    5% Glycerol


  • Protocol

    ● Directly load 3~6 μl of this product to the agarose gel (load 1 μl product per 1 mm gel lane. The loading volume can be increased appropriately for wide lanes).

    ● Electrophoresis condition: 0.5~1.0% agarose gel, 4~10v/cm voltage.

    ● DNA marker can be visualized using ethidium bromide under UV light.


  • Recommendations

    ● Directly use, do not require heating.

    ● For ideal results, please use new agarose gel and change electrophoresis buffer in time.
